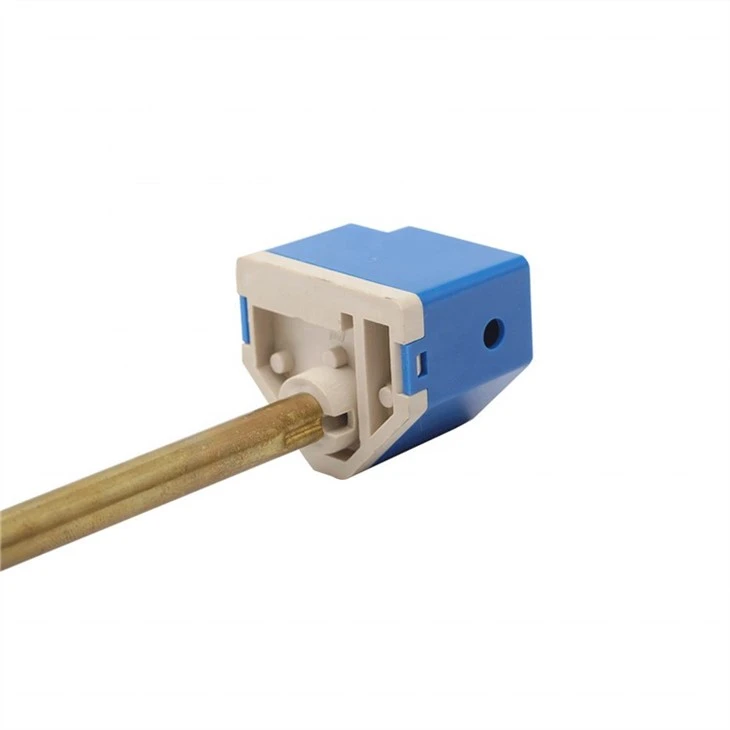

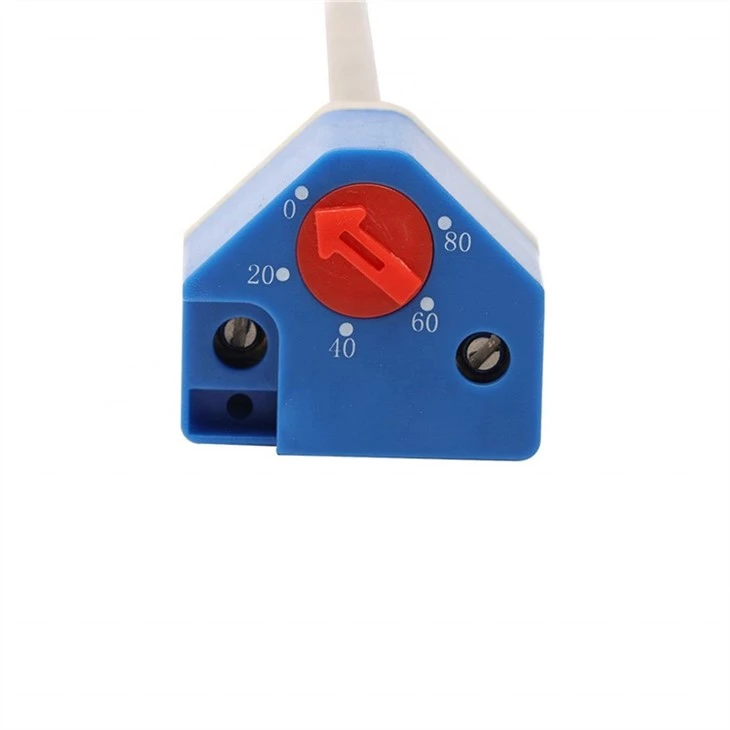

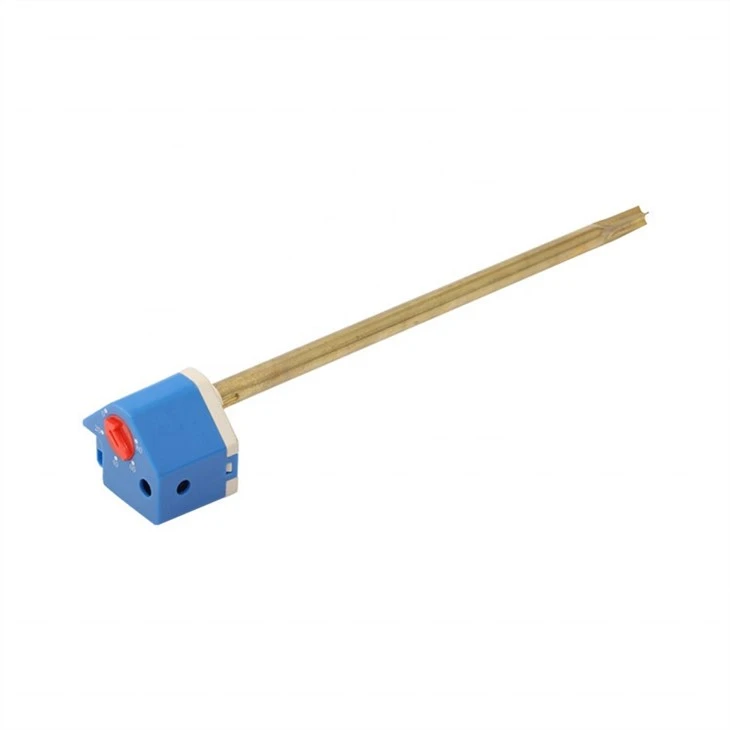

Stem type water heater thermostat

Data Sheet

Stem type water heater thermostat is a mechanical device that controls the flow of electrical current to various parts of the water heater. First, the thermostat senses the presence of heat. Second, by sensing the presence of heat, the immersion heater thermostat can control electrical current that is sent to another thermostat or to a heating element. A water heater may contain one or two thermostats, called upper and lower thermostats. In this configuration, each thermostat controls one heating element.

Normally, an electric water heater has three main features. They include a heating element, a thermostat and a switch to prevent the unit from excess heat.

Stem Thermostat is designed for precise temperature control in water heater. Operating at a voltage of 220 volts and with a current capacity of 15 amperes.

Stem type water heater thermostat ensures reliable performance and accurate temperature regulation. It's a critical component for maintaining controlled heating and preventing overheating in water heater systems.

You can use it to produce heated water to suit different purposes. For instance, the level of heat required for washing might be different from the one needed for showering. Furthermore, it controls the current that moves to another thermostat or heating element.

An electric heater with a storage tank of at least 30 gallons comes with two heating elements with a thermostat on each of them. The thermostat on top acts as the primary one while having a high limit switch. But the lower one detects any change in the temperature of the water.

Both hot water thermostat (on the same water heater) do not have the same features. They even do not work at the same time.

The high limit switch is found on the location as the upper thermostat. Hot water tank thermostat also has a button that stops it from working, especially when the water goes above 170F. To restore it to default settings, press this button.

To set the stem thermostat on a water heater, you will need to adjust both thermostats to similar temperatures. Alternatively, you can adjust the upper element to a lower temperature thereby allowing the one underneath to activate first.

For water heaters that have smaller tanks (a maximum of 30 gallons), a single thermostat and heating element handle temperature control. But they use a high limit switch like the larger water heaters.

A Step-by-Step Guide to Repair a Water Heater Thermostat Turn Off Power at Main Breakers 1. Remove the thermostat cover and set it aside. 2. Unscrew or unclip the wires from the thermostat, taking care not to pull them by their thin wire coating. If you can't detach them with your fingers, use a thin pair of needle-nose pliers or tweezers. 3. Turn off the power from your circuit breakers so that no electricity will run through to the heater while you work on it.

If you just need to change the thermostat there is no need to drain the tank or remove the immersion heater element itself. The thermostat locate in a sealed tube in the immersion heater so all that is needed is to disconnect the power wires from the thermostat and pull the thermostat out of the heating tube. Then replace the new thermostat in reverse order.
