Description

The immersion heater is a versatile device used for effectively heating various liquids. These electric heaters are designed to be directly immersed in liquids, making them the optimal solution for applications requiring rapid and continuous heating. The core of their effectiveness lies in their simple and sturdy design, which enables them to directly convert electrical energy into thermal energy.

There are various forms of immersion heaters, such as side-mounted heaters, flange heaters, and plug heaters, each tailored for specific applications and installation methods. They are commonly used to heat water, oil, chemicals, and other fluids in industries ranging from automobiles to food processing. The versatility of these heaters makes them indispensable for controlled processes, with uniform heat distribution.

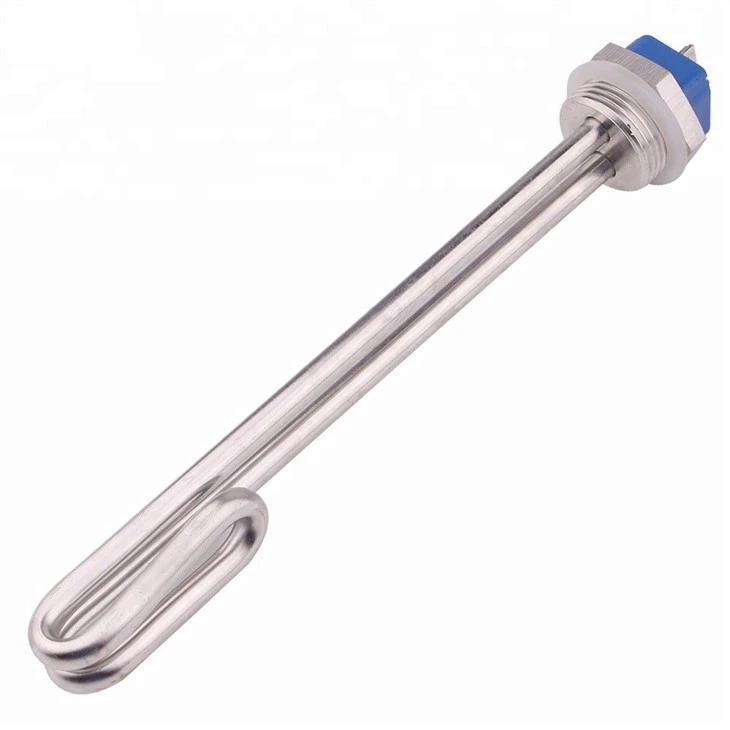

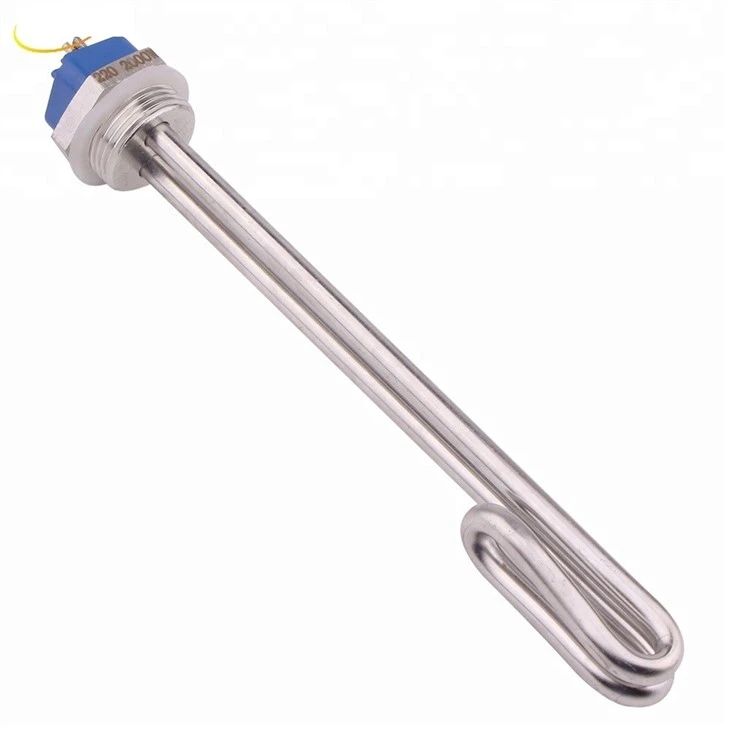

Screw in type immersion heater element is also known as the hexagonal nut type heating element, which is made of hexagonal nuts (copper, stainless steel), single or multiple U-shaped heating tubes, high-temperature ceramics, etc., which are processed through strict management and precise techniques. The tubes and fasteners are often welded to ensure no leakage.

The top of the screw in heater element is equipped with a protective cover shell and can be configured with a temperature measurement hole for timely control of the temperature of the heated object. It can be equipped with sleeves and explosion-proof junction boxes, making it even safer and more reliable.

The advantages of this product are: small size, high power, and it can heat stationary or flowing air and liquids in various situations.

Installation method: Screw thread alignment.

Common specifications: M38, M40, M47 (40 pipe teeth), M51, 1 inch, 2 inches, etc

Application: Heating liquids (oil, water, chemical media), such as in bathrooms, pipes, solution tanks, solar energy, water tank bodies, and still or flowing air.

Screw in type immersion heater element is ideal in the application when there is limited space or connection problems.

They protect liquids from freezing in smaller tanks or reservoirs, come in a wide variety of sizes, and have a tubular element with a threaded hex plug. Some models have a thermowell for a temperature control sensor. They screw directly through a threaded opening in the tank wall.

Screw in elements are commonly used in residential water heaters,what is more,they are easier for replace.

According to the weight of the liquid in the water tank, the working temperature when heating, heating time, etc., to judge the size of the power needed. As for the specific size of the immersion heater element, it needs to be designed according to the installation space. These can be consulted by the manufacturer of the heater element, and can be customized non-standard.

Before ordering the screw plug heater, customers need to know whether the water is weakly corrosive and whether the scaling speed is fast.

product-799-799

Advantages
1. Energy efficient: Fold type screw in immersion heater are designed to convert electrical energy into heat, making them highly energy efficient. They can quickly heat water to the desired temperature, while minimizing energy consumption.

2. Easy installation:fold type heater are easy to install and replace. They are available in various sizes and types, so it's easy to find the right one to suit your needs.

3. Durability: they are made from high-quality materials that are designed to withstand corrosion and high temperatures. They are engineered to be long-lasting and provide reliable performance over the lifespan of your water heater.

Data

SPECIFICATIONS FOR AC 220V Submersible Water Heater Heating Element
Material (SUS304,316,321,Incoloy 800)	SUS304
Voltage	220V
Wattage	2000W
Tube diameter	8mm
Tube length	210mm
Thread size	1"BSP

Related products detail

Pre-Season Maintenance-Tech Tips

• Check heater elements for any process fluid related build-up or corrosion.

• Check tank for sediment level in area surrounding heater. Remove any sludge deposits or sediment from heater and tank.

• Check for loose terminal connections and tighten if necessary.

• If terminal enclosure has a gasket, inspect and replace if necessary.

• Clean terminal ends of all contamination.

• Inspect all rigid conduit and sealed flex hose connections. Note: Conduit and hose connections should always slope away from the terminal enclosure.

Application

1. Heating heat transfer fluids
2. Heating medium and lightweight oils.
3. Heating water in tanks.
4. Pressure vessels.
5. Freeze protection of any fluids.
6. Food processing equipment.
7. Cleaning and rinsing equipment.
8. Beverage equipment
9. Beer brewing
10. Used in many other applications.

FAQ

1. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

2.what can you buy from us?

Immersion heater,Cartridge heater,Ceramic emitter,Oven heater,Band heater

3. why should you buy from us not from other suppliers?

Dongguan Detai Electrical Appliance Co., Ltd. was founded in March of 1995 with original in vesrment of RMB 5 million. We have 5 senior engineers, eight, enginees, more than 20 engineering technicians and 450 workers.

4. what services can we provide?

Accepted Delivery Terms: FOB,CIF,EXW;

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,Western Union;

Language Spoken:English,Chinese
