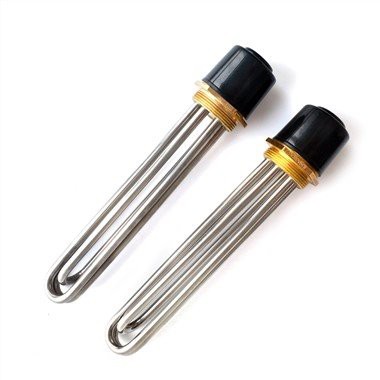

U Shaped Electric Water Immersion Heating Element

Description

U Shaped Electric Water Immersion Heating Element by our factory is made from the excellent stainless steel tube, high quality electrically-melted oxidized magnesium power and high-density heating wires with international famous brand and processed by national advanced equipments.

Concerning the water tank heater element,if the power is big,we can use flange heater element,if the power is small,we can use the U shape heater or threaded cartridge heater element.So how to assemble the U shape heater for the water tank?

1.We must know the water level before assemble.If the water level will be lower down,how much lower?If this question is confirmed,according to the principle that the heating area must not be separated from the water surface, the U shape heater should be installed below the water level to ensure that the heating area is fully immersed in the liquid.

2. While meeting this condition, but also to minimize the installation difficulty,it will be more convenient to assemble the U shape heater at the four side walls of the wate r tank.

The U-shaped design facilitate uniform heat distribution and reliable heating across your water bath. Its compact 150 mm length is optimized for efficient installation while maintaining its heating efficacy.

Spray drying heating element: a key element for optimizing the drying process.

Spray dryers are widely used in food, pharmaceutical, chemical and other industries to convert liquid substances into powder through the form of spray. As an important part of the spray dryer, the U shaped heating element plays a key role in providing heat energy and optimizing the drying process.

In spray dryers, electric heater elements are a common  element whose function is to evaporate liquid substances into dry powders. The design and performance  directly affect the heating efficiency and product quality of spray dryer.

The spray drying heater element uses the principle of resistance heating to convert electrical energy into heat energy. When the current passes through the electric heating element, the resistance inside it will generates heat, which in turn heats the surrounding air or liquid. In a spray dryer, the electric heater is responsible for heating the hot air inside the spray dryer so that it has enough heat to quickly evaporate the liquid substance into a powder.

Design feature

a. Material selection: it is made of corrosion-resistant materials such as stainless steel to meet the requirements of contact with chemical substances.

b. Structural form: The common design is a double U-shaped , whose shape makes the heating area larger and is conducive to improving the heating efficiency.

c. Uniform heating: The structure of the double U-shaped electric heater element makes the heating evenly distributed ,so ensure that the liquid substance in the spray dryer is subjected to balanced heat action.

How to connect 6 pieces U shape heating element?

First ,we must check what about the voltage of the heater and the supply voltage.

a.If the voltage of the single heating tube is 220V,to connect the 220V power source,we must use parallel way.

b.If the voltage of the single heating tube is 220V ,but the power source is 380V,we must use star connection.

c.If the voltage of single heating element is 380V,but the power source is 220V,it can be used but the working power will be small.

d.If the voltage of single heating element is 380V,but the power source is 380V,it can be used triangle connect way.

Data Sheet

Advantage

Best immersion heater element from ETDZ is the most versatile and the best-suited industrial heating solution for a large number of applications. Tubular metal heating element from ETDZ are factory-configured to almost any shape or size. Custom bending diameters can be made upon request and we can manufacture a variety of industrial heating solutions such as flanged tubular heaters. Flexible tubular heating element is typically made using steel, stainless steel, Incoloy, inconel or titanium alloys. Tubular metal heating element is often regarded as the foundation of all heating elements. Immersion heater has a strong outer sheath to help protect the process heater from physical stress and uses high quality alloys to allow efficient heat transfer from resistance coil to your heating medium.

Certification

FAQ

1. Q: How to Choose the System Voltage ?

A: We can design the heater element for 12v or 24v tubular heater or 220-380V for normal tubular heating eleemnt.

2. Q: Is there cheap shipping cost to import to our country?

A: For small order,express will be best, for bulk order,sea ship way is best but take much time.

For urgent orders,we suggest by express, big quantity by air.

3. Q: Can I get some samples ?

A: Yes, Sample orders welcomed.

4. Q: What is your minimum order quantity?

A: There's no minimum quantity ,you can buy any quantity. However, few in number, the unit price will be a little higher.

5. Q: How can I know the status of my products ?

A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.

6. Q: Can You Give Me Help If My Products are Very Urgent?

A: Yes, Of Course, We Will Try Our Best to Give You Help. Because We Have Our Own Factory to Produce. We Can Flexible to Adjust Our Production Schedule.

7. Q: What's your packing?What to do in case of damaged goods during transport?

A1: Our Normal packing is bulking in Cartons, less than 20 kgs/carton, 48 cartons / pallet. We also can pack products according to your requirement.

A2: To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.

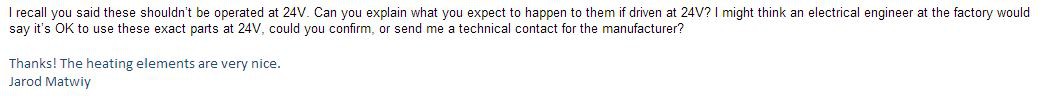

Customer feedback
