Description

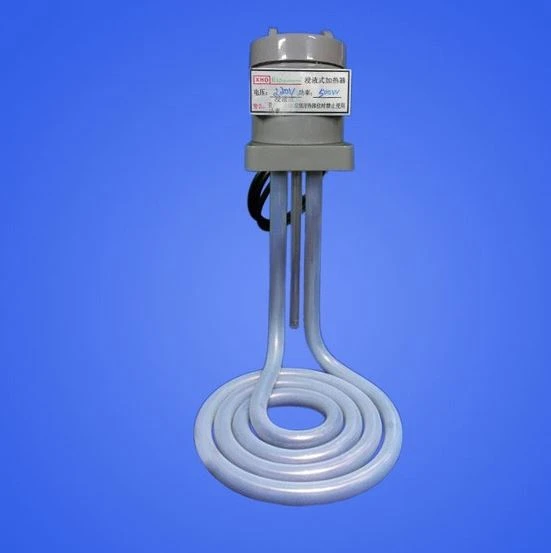

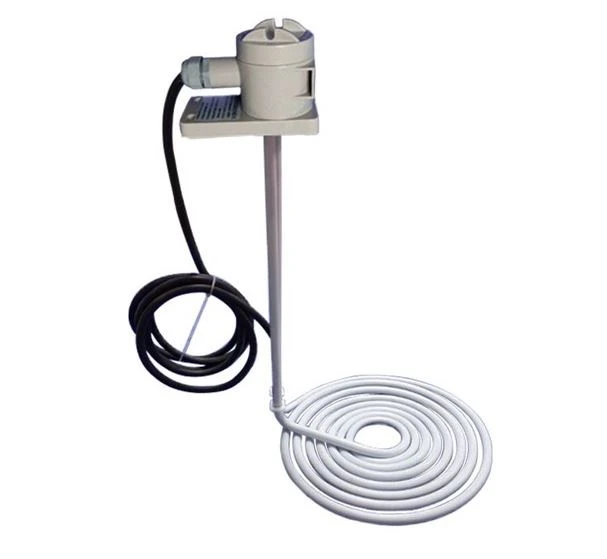

Immersion heater element is designed to be inserted into a tank or container, where they transfer heat directly to the liquid. It is connected to a power source, and when the current goes through the tube, it heats up, raising the temperature of the liquid. The heat transfer is efficient and uniform.

Application of immersion heater element include:water heating,oil heating,chemical processing and food industry.

They are found in water boilers, hot water tanks, and even in solar water heating systems.For oil heating,they are commonly found in oil storage tanks, oil refineries, and oil extraction facilities.

Waterproof immersion heaters provide an easy and reliable solution for those seeking a waterproof immersion heater. Design rated to waterproof spec IP67 which ensures safe operation, and continuous immersion in underwater conditions.

This 240v 1000w Immersion Heater Element uses only 1000W power to heat up water. The average time taken is only 8-10 minutes for a full bucket of water.

When choosing an immersion heater, choosing the right wattage . A low-wattage heater will be sufficient if the liquid is small. If the liquid is large, you'll need a higher-wattage. Ensure you choose the right wattage to avoid overheating or damaging the heater.

When you're not using the it, store it safely. Keep dry,keep the heater where it can be easily knocked over or damaged.

Teflon heater is the most versatile solution for a great variety of heating applications, in industry as well as in other fields. They can be shaped into any pattern, can be clamped or wrapped around the bodies that shall be heated. A large range of tubular heaters are available from stock. Standard diameters are 5.3, 6.6, 8,10,11,12 mm.

Thermal protector built in the 240v 1000w immersion heater element . Replaceable P1 fuse standard for solutions up to 190°F (88°C).

Data Sheet

Material	Imported PTFE/PFA/Teflon/F4 material
Usage	process heating for all corrosive liquid
scope of application	metal surface finishing, electroplating,printed circuit board,cleaning technologies, pharmaceutical, food, and biomedical.
Certification	CE and ISO9001:2008
Safety	Anti Dry Design Testing after finishing the heater Matched with Thermal Protector
Warranty	1 year( Non-artificial damage )
after-saleservices	conact us by email,skype,MSN,telephone,we will solve your problem.
Voltage	220V-480V
Power	1kw-6kw
Phase	1P only
Terminal Box	PP material,Red, antiflaming
Hot Zone	can be designed
Total length	can be designed
Minimum liquid level	50mm above Hot Zone of heater
Our product sell to USA,Italy,India,Malaysia,Singapore,Korea, Philippines,etc. It can be designed as your requirement.

QQ20210712162036

Advantages

a).Manufacturer, in house mould design and assembly, competitive price.

b).10 years' of experience working with OEM's various materials

c). QC:100% inspection

d).Confirm sample: before start mass production we will send the pre-production samples to customer for confirmation. We will modify the mould until customer satisfied.

e). Small Order Allowed

f). Strict QC and high quality.

g). Highly skilled manufacturing process

h). A broad variety of OEM product range
