Data Sheet
No. | Main Parameter | |
1 | Model No. | WNA-29 |
2 | Tube Material | Copper(T2) |
3 | Power | 1200W +5%, -10% |
4 | Voltage | 220V-240V/50Hz. 110V/60Hz |
5 | Hi-pot test | 1800V/S min cold condition |
6 | Leakage Current | 0.75ma max |
7 | Insulation | 500MΩ |
8 | Heating resistance wire | Ocr25AI5, Cr20NI80 or as custom's requirement |
9 | Warranty | one year |
10 | Total Length | 300mm |
Description

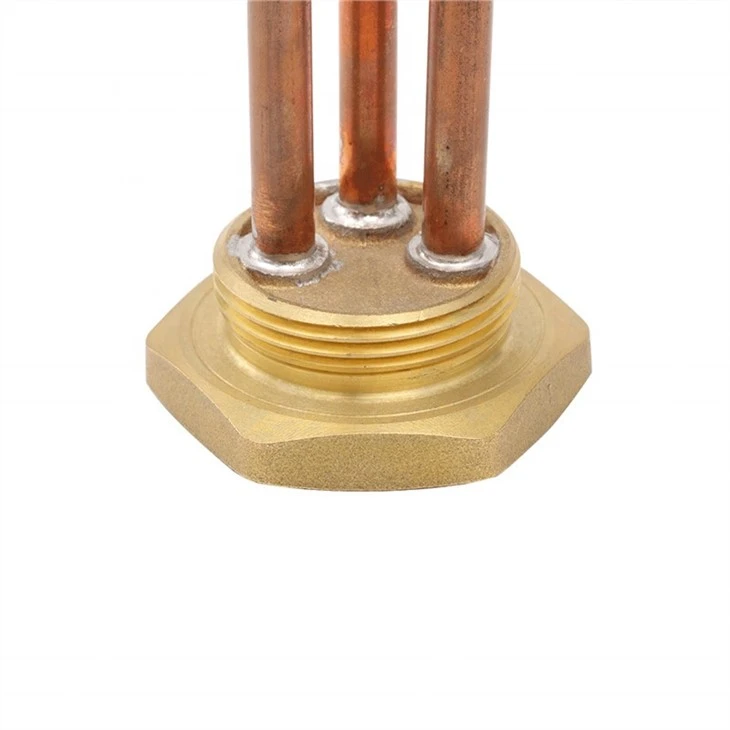

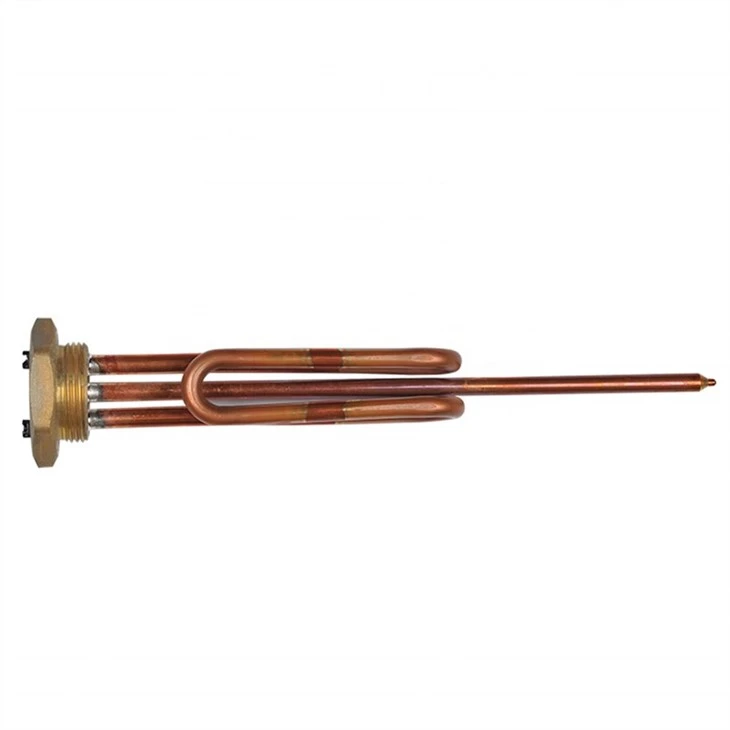

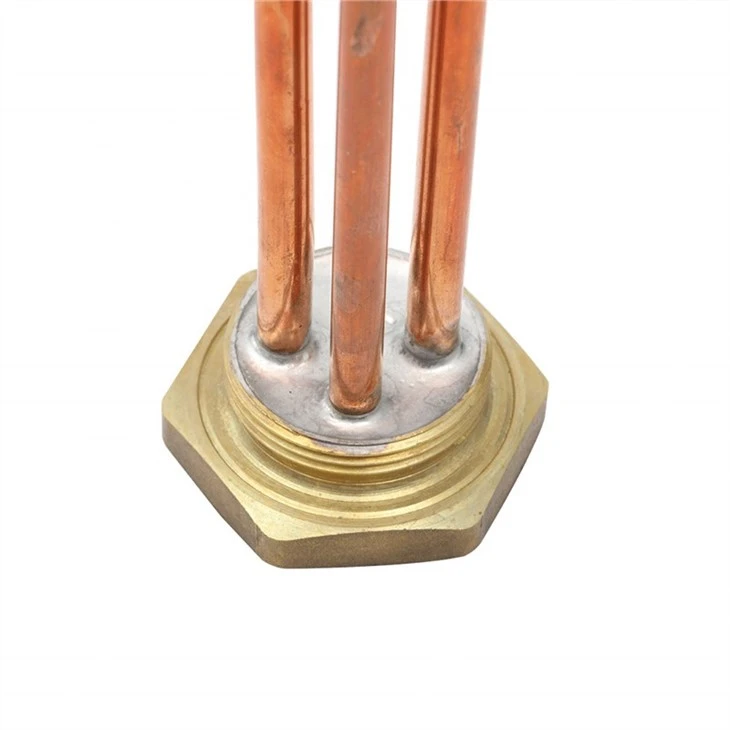

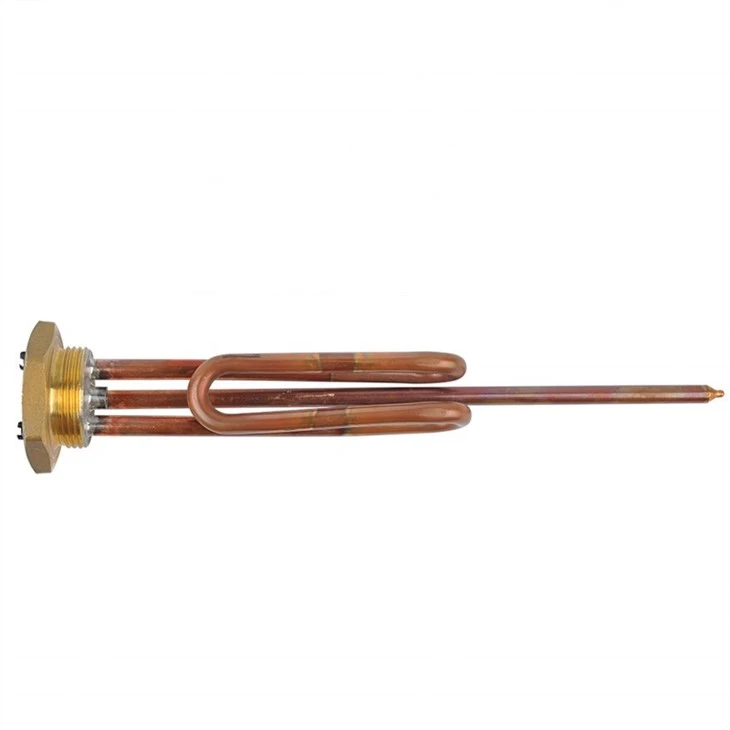

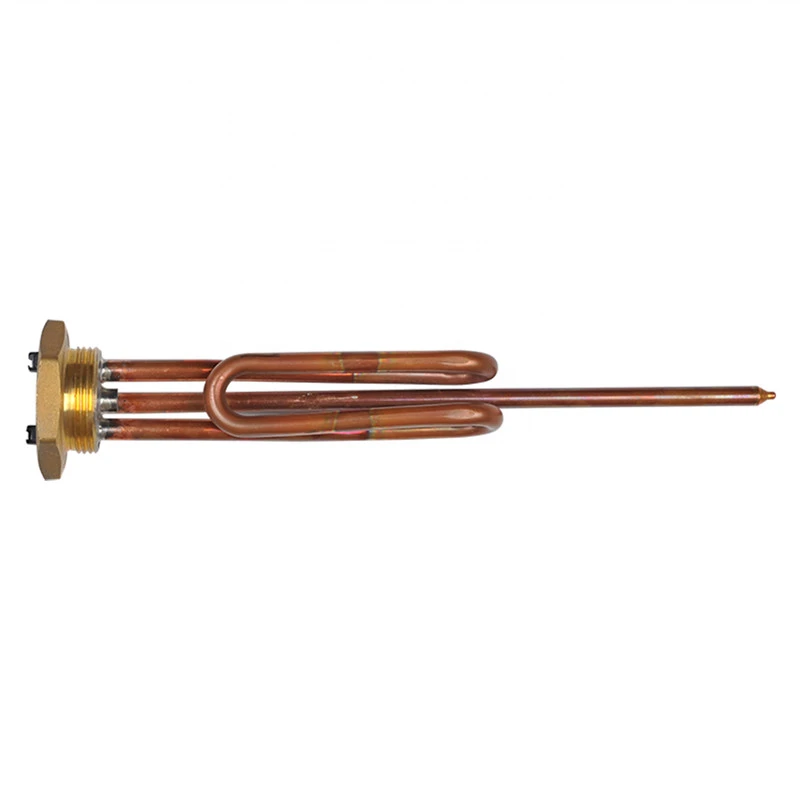

220V Immersion Heater Element is electric heating elements that are found in water cylinders to heat water. Immersion element act like a kettle to heat the surrounding water in the cylinder. The benefit of an immersion heater element within your heating system is that it means even the boiler fails, you should still be able to get hot water.
Most common use of this flanged immersion heater is within pressurized vessels and tanks carrying liquid element. You can also monitor and even control the machine. Threaded/Screw Plug Heater –This immersion water heater element can be directly welded at the side of the tank and also has a wiring box with all the control mechanism built in.
Install an immersion heater from Grainger in a tank or other industrial container to heat water, oil, solvents or gas. Since immersion heaters come in direct contact with the target material, they are nearly 100% energy efficient. Immersion heater element is commonly used in steam boilers. Screw-plug heaters are designed for industrial tanks and process piping. Use Grainger immersion heaters for safe, dependable heating of water tanks and containers of industrial fluids and gases.
Voltage
Our custom flange heaters can be supplied with voltages up to 600V.
Wattage and watt densities
Custom-made flanged immersion heaters can be designed with any requested wattage or watt density available.
Flange size and ratings
Standard ANSI sizes as well as Metric flanges are available for each flanged immersion heater we manufacture. We can also engineer custom square, round, and other flanges to match your unique coupling.
Flange materials
Heatmax's flanged immersion heaters are available in various alloys including Steel, Stainless Steel, Titanium, and other specialty alloys.
Length The element length of each flanged immersion heater can be built to fit the space your application demands.
FAQ
1.
Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.
2.
Q: How can I know the status of my products ?
A: We will keep you posted for the every production progress like material purchasing, production status, delivery time, tracking number until you recieved the products.
3.
Q:What is the standard of package?
A:Professional export packing:
1)Separate Blister plastic box or Bubble Wrap/Pearl Wool, keep no scratch and damage.
2)Under 100 KGS parts, use strong DHL export Carton .
3)Above 100 KGS, will customize Wooded case for packing
