Description
We develops immersion heaters for heating and warm keeping of oil and oil-based products. Immersion oil heater element with the right power distribution, material and control are an effective and precise heating source that requires minimal maintenance. In our design we are taking the characteristics in account and produce an immersion heater that is gentle to the liquid and properly adapted for the process.
Oil Immersion Heaters are used in a variety of area where oils or viscous fluids need to be heated. Mostly it is used in industrial requirements. They are meant to be installed in pipe bodies, tanks, or pressure vessels with typical pipe sizes.Immersion heater for oil tank can control the temperature of oil precisely, it is helpful for industrial processes.
Direct contact heating allows rapid heating for large amount of the oil.These heaters are easy to use and maintain. Some are made from corrosion-resistant materials such as Incoloy.
The surface load of immersion heater used for heating oil is limited by the medium. That is, the prerequisite should be to ensure that the oil on the surface tube does not get damaged. Since the convective heat transfer of oil is closely related to its viscosity, and viscosity is determined by the oil's temperature. For example, when the oil temperature of a diesel engine is between 5-8°C, its convective ability is very poor, and when it reaches 180°C, its convective ability is even worse than that of water. Therefore, the conditions for heat transfer from the surface of the immersion heater to the heated oil are much worse than in water. This is why when heating water with the heating tube, the surface load designed can be much higher than that when heating oil.
Oil scale will easily formed on the surface of the oil heater element,to know more about the oil scale and prevent it,please view the airticle Why the oil scale is so serous in the oil tank heater element.
The applications are as follow:
Oil and gas sector.
Chemical sector: These heaters are used to heat viscous chemicals and sustain reaction temperatures in chemical reactors.
Lubricating Systems: Oil immersion heaters keep industrial machinery lubricating oil at the correct temperature for proper operation.

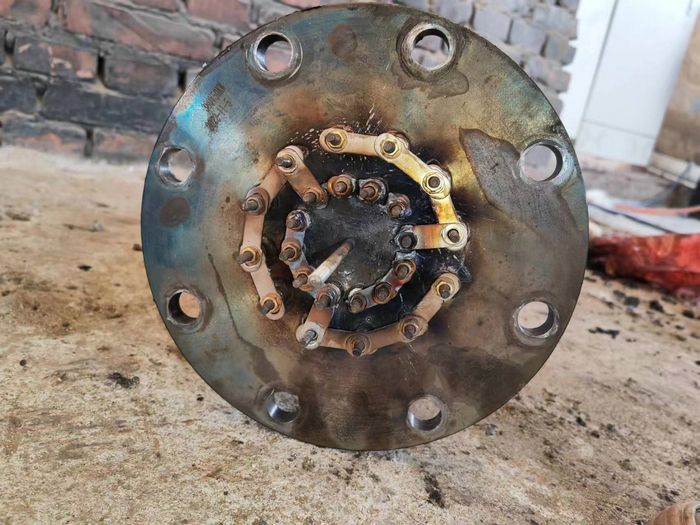

Some customers ask us why the oil heater element always broken within 3 months purchase from other supplier.
The causes can be followed:
1.The surface load design is too large, the normal per meter heating area power design of the immersion oil heater element can not exceed 1.5KW, and the heat conduction per meter power is 2.6KW. As the fluidity of heat conduction oil is relatively poor, so its power design can not be too large, the higher the power of the heating element, temperature will be higher, when the heat of the oil heater element can not be absorbed by the oil in time, it will accumulate on the surface of the heater element, until the temperature limit of the oil tank heating element is reached and burned out, so there are cracks on the surface of the heating tube in the customer's picture.
2.According to the figure above, we can see that there is black oil scale on the surface of immersion oil heater element, and there are many impurities on the surface of the tube, which indicates that the heat conducting oil heated by the customer is thick and the oil scale forms quickly. The oil scale covers the surface of the heat conducting oil heating tube, so that the heat on the surface of the tube cannot be conducted out.
Immersion heater element is used in different environment,such as oil,water and other corrosive liquid.
Different environment,the warranty is different,so how to design the power of these heater element?
The power design of heating element is closely related to the nature of heating liquid, so the power design ratio of heating different liquids is not the same.
The power of the electric heating heater for heating water should be designed according to the impurity mass of water.
The power of the heater which heating corrosive liquids should be designed according to the degree of corrosion.
For heating oil,it should be designed according to the consistency and viscosity of the oil.
Data Sheet
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
|
Dielectric strength |
1500 V |
|
Tube diameter |
Φ2mm-Φ30mm |
|
Tube Material |
Fe, SS304;SS316,SS321,ss202 etc |
|
Insulation Material |
High-purity Mgo |
|
Reisistance wire element |
Ni-Cr or FeCr |
|
Lead Connection Option |
Crimped or Swaged leads |
|
Lead and type of connection leads |
10" Fiberglass Standard(Wire options,silicone high temperature frberglass) |
|
Voltage and power |
customized |
|
Shape |
customized according to drawing |
|
Warranty |
one year |
Show Room
Choose the right Immersion Heater for your application
A screw plug immersion heater can be applied to a variety of clean water and oil applications.
The unique versatility of this design allows field adjustment of the rating by simple connections to the six elements of the heater.
Flanged Immersion Heaters
The flanged immersion heater features a rugged construction.
Heavy duty jumper straps and terminal parts assure permanent tightness of connections.
Over-the Side Immersion Heaters
These heaters are equipped with a vapor-tight terminal enclosure and a 3-foot-long,
vinyl-covered flexible conduit containing the 2 power leads and a ground wire.
The stainless steel mounting bracket can slide along the element, which makes installation easy. screw plug immersion heaters.
Portable Tank Heaters
The heater consists of copper sheath Nickel plated elements, watt densities in the range of 40 to 50 W/in2, power ratings of 4 and 6 kW for 208 and 240 Volt.
The main features of the heater include a 26 inch riser (unheated section) and an integrated temperature control for the range of 60 to 250F.
Product Reliability and Safety, our mission
Product Safety has always been a distinctive feature of ETDZ products. Over the years we developed and patented components with unique safety standards to ensure final Customer maximum security in using its domestic appliances. Through our Full Reliability Approach we make sure all our products guarantee safety performance defined by our R&D staff for the entire course of their life.
