Data Sheet
MOQ | 1-5 PC |
Thread fitting size | M12* 1.5; M14*2.0; M16*2.5 etc |
Tube diameter | Φ6mm - Φ 16mm |
Tube Material | SS304, SS316L, SS321, SS310S and INCOLOY800, 840 etc |
Insulation Material | 99% Purity Mgo |
Conductor Material | Nichrome Resistance Wire |
Wattage Density | High/Middle/Low (5-25w/cm2) |
Voltages available | 60V- 600V Customized |
Lead Connection Option | Threaded Terminal or Lead Wire |
Option | Waterproof or with fins |
Description

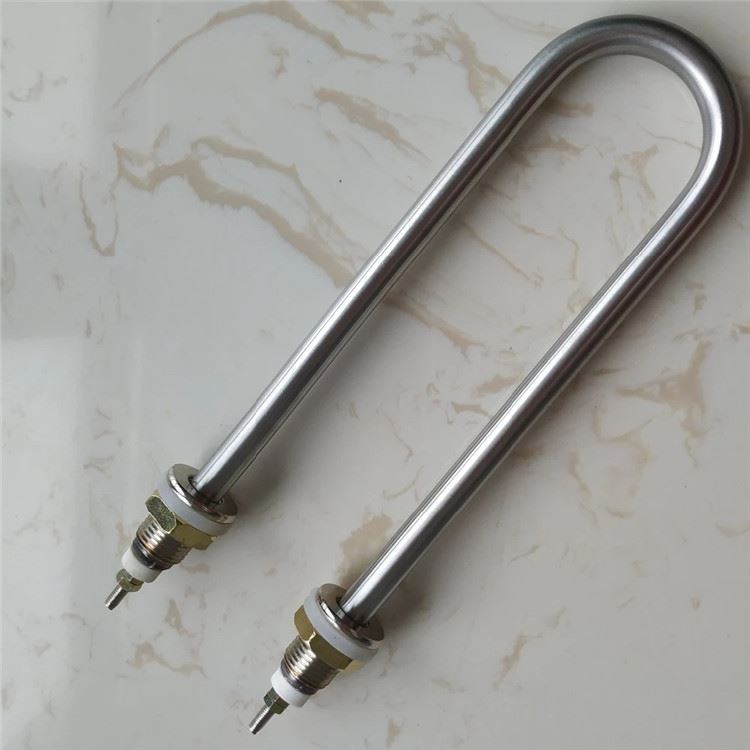

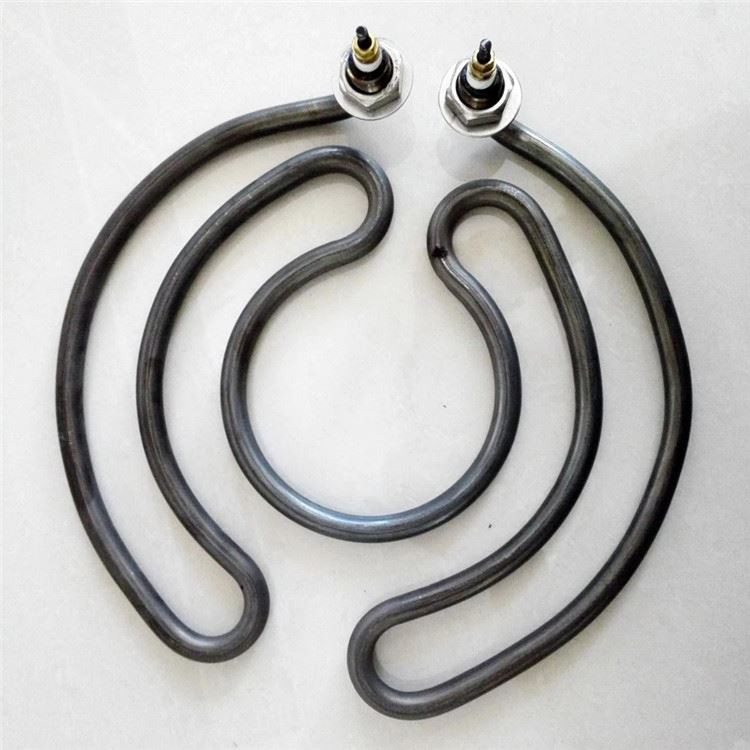

Stainless steel tubular heater element is cylindrical electrical heating elements with two head. Protected with a stainless steel sheath. Mostly double head heater is used for heating up solids such as injection presses heating plates or various tools, flexible tubular heater can also be used for heating up water of gases under certain conditions.The choice of technology will depend on technical specifications required and the application.

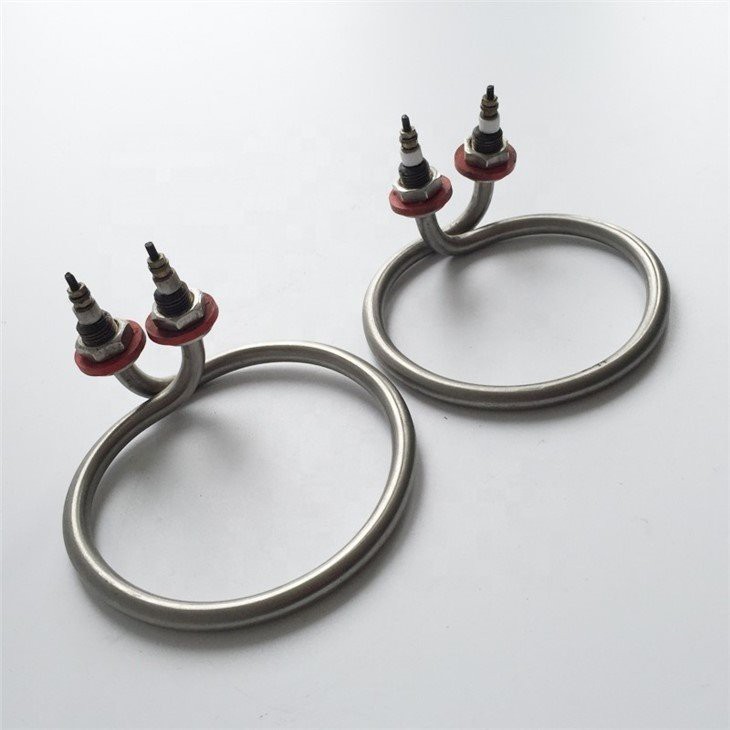

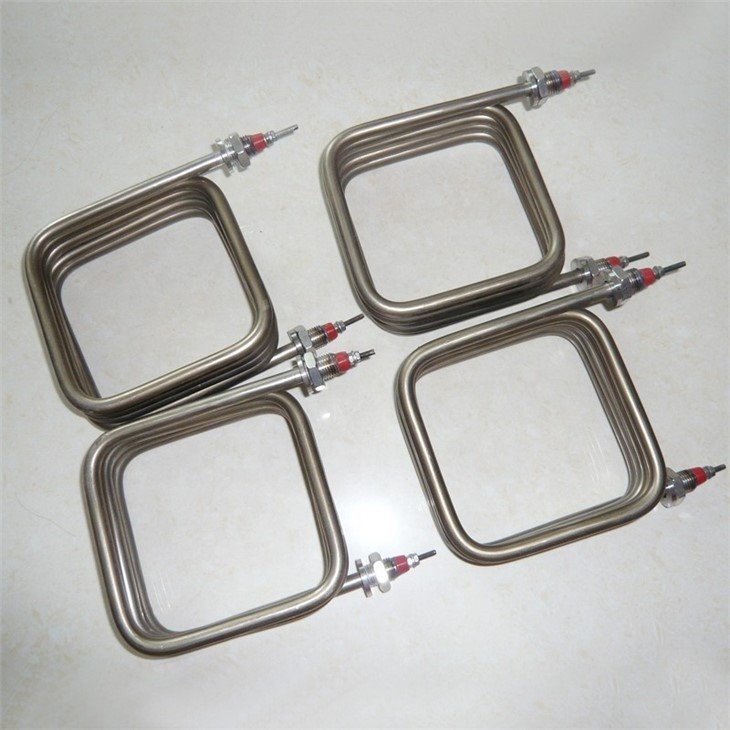

Water immersion heater is one type of tubular sheathed heating elements,it is widely used to heat liquids, air or metals as a reliable, economical, and versatile way, which can be used in a large variety of applications, including those with size restrictions for small spaces. Tubular electric heater allow for even heat distribution as well as a high dielectric strength. Tubular heater can be formed into a variety of patterns.
Water immersion heater can be used in their straight form or bent into various shapes. Guranteed long life span with Nichrome 8020 Heating wires ( Nickle Assay reaches up to 76%) and with 99% Purity Mgo Insualation to reach highly good thermal conductivity.
How to choose the right Material for the heater?
Copper Sheath | Water heating, water solutions non-corrosive to copper. |
Stainless stell sheath | Immersion in oils, molten salt baths, alkaline cleaning solutions, tars and asphalt. Also suitable for clamping to metal surfaces and casting into aluminum. Corrosive liquids, food processing equipment. Stainless steel 304 is the normal material. |
Incoloy Sheath | Air heating, radiant heating, cleaning and degreasing solutions, plating and pickling solutions, corrosive liquids. Usually for high temperature. |
itanium tube | corrosive environment. |
FAQ
1. Q:How do I know about the production?
A: We will double confirm your requirements and send you the sample before the mass production.
During the mass production, we will keep you informed of any progress. Besides, we will
do 100% quality inspection before shipment.
2. Q: Is it OK to print my logo on heating element product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
3. Q: Can we design our own package or print our own logo?
A: Yes! Package and logo will be made acording to your requirements.
