Data Sheet
Wattage Tolerance | +5%, -10% |
Resistance tolerance | +10%, -5% |
Insulation resistance (cold) | ≥ 500 MΩ |
Maximum leakage current (cold) | ≤ 0.5 mA |
Dielectric strength | 1500 V |
Packaging | Plastic bag , Carton box, Wooden box |
Sheath/Casing materials | SUS304/ SUS321/ SUS316/ SUS316L/ SUS310S/ Incoloy800/ Incoloy840/ Copper/ Titanium |
Terminal Styles | Plain Pins/ Flag Terminals/ Spade Terminal/ Screw Terminal/ Special Terminal |

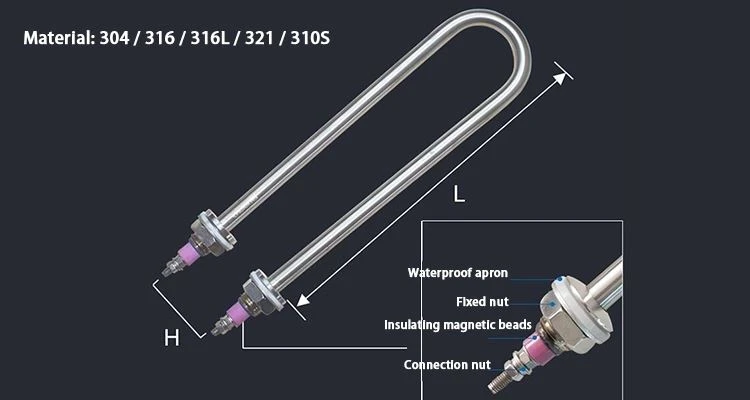

Shape | U/ Hairpin/ W/ Z/ Straight/ Spiral/ Circular(with extension)/ Double Loop/ Bent Hairpin |
End cap | Ceramic end (standard)/ Cement/ Epoxy/ RTV seal |
Construction Type | Swaged / High Watt Density – up to 1400°F (760°C) |
Description
Electric Kettle Coil Tubular Heating Element is cylindrical electrical heating elements with two head. Protected with a stainless steel sheath. Mostly double head heater is used for heating up solids such as injection presses heating plates or various tools, double head heater can also be used for heating up water of gases under certain conditions.The choice of technology will depend on technical specifications required and the application.When you don't know exactly which product you are looking for, we will recommend you the best solution for your needs.Tubular heaters are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases.
Electric kettle coil tubular heating element is produced using Incoloy, stainless steel or copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer. Electric Kettle Coil Tubular Heating Element can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries ;Engineering Industry ;Packaging machinery ;Shoe making machineries ;Foundry Equipment ;Radiant Surface heating ;Hot Runner Mould Systems etc.
Feature and Installation:
1. Moisture resistant
2.Even heat distribution
3.High Dielectric Strength
4.Cost efficient
5.Wide range of diameters available

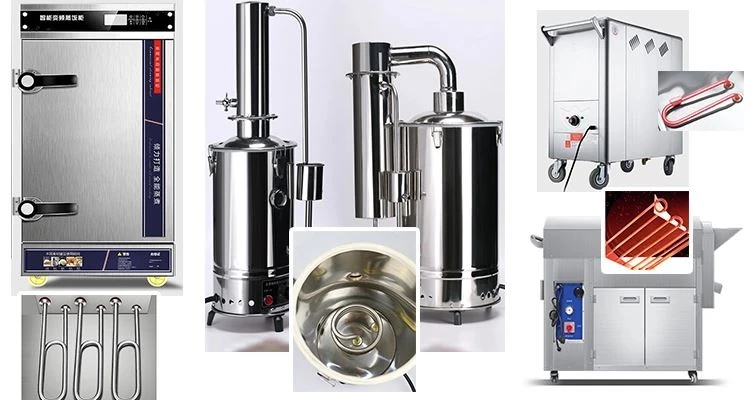

Application:
1. Plastic Processing machinery.
2. Water and Oil Heating Appliances.
3. Packaging machineries
4. Vending Machines.
5. Dies and Tools.
6. Heating Chemical Solutions.
7. Ovens & Dryers
8. Kitchen equipments
9.Medical equipments Used in many other applications.
FAQ
1. Q:How do I know about the production?
A: We will double confirm your requirements and send you the sample before the mass production.
During the mass production, we will keep you informed of any progress. Besides, we will
do 100% quality inspection before shipment.
2. Q: Is it OK to print my logo on heating element product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
3. Q: Can we design our own package or print our own logo?
A: Yes! Package and logo will be made acording to your requirements.
