Description
Thermostat, as the name implies, is a device for controlling temperature. In a water heater, the main function of the thermostat is to control the working state of the heating element, thereby realizing automatic adjustment of the water temperature. Its basic working principle is to automatically start or stop the heater by sensing the change in water temperature. The thermostat we use in water heater has advanced sensing technology, which can sense the change in water temperature and ensure that the outlet water temperature meets the set requirements. Not only that, our water heater thermostat can also help users save energy and avoid unnecessary energy waste, thereby reducing the cost of use.

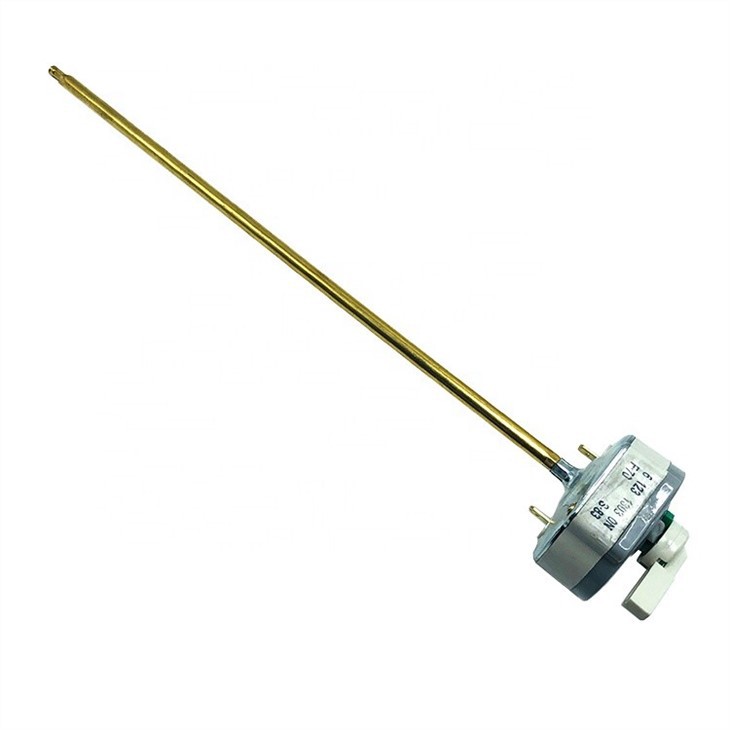

Plug in thermostat for water heater combine thermal regulation and safety facilitating the product mounting on compatible immersion heaters. Thermal regulation is adjustable in a custom temperature range with lever options adapted to your product implementation.It is a temperature controller that uses the thermal expansion difference between the copper rod and nickel rod to sense temperature, it also has a bimetallic disc to control the bipolar safety cutting, which is suitable for water storage water heaters.It is a manual thermostat with long copper tube.
The thermostat on your water Immersion Heater controls the temperature. By adjusting the thermostat setting, you can reduce the amount of energy.A temperature of 60°C is enough for most household needs. Avoid setting the temperature too high, as this not only wastes energy but also increases the risk of scalding.
With a customizable temperature range spanning from 0°C to 75°C, you have the flexibility to achieve precise temperature control tailored to your needs.Engineered for excellence, these sensors offer a seamless blend of accuracy and adaptability, empowering you to regulate temperatures with precision and efficiency across a variety of applications.
Plug in thermostat is easy to install, can be directly inserted into the special water heater element, instead of an individual expansion thermostat and a protector, save the connection line and additional fixed: Break temperature can be preset, the user can adjust the control temperature: Now it has a multi-level temperature control function; It has the characteristics of simple control, easy operation and low cost, and is another option for temperature control design of storage water heater.

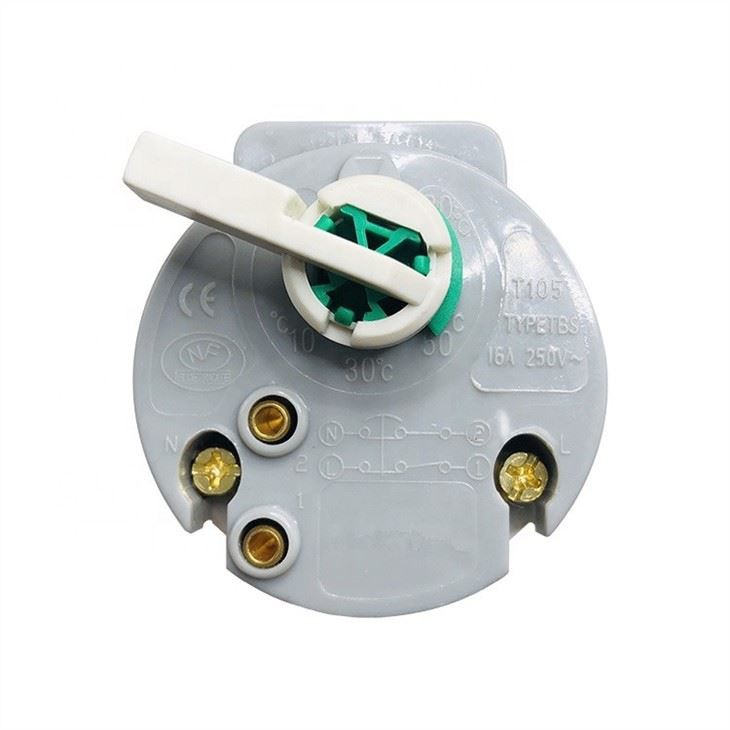

Rotate the button to adjust the temperature, choose different rods and match different electric water heater heating elements.
The electric water heater is heated and not heated after the water heater thermostat is turned on and off.After the circuit is connected, the single-phase stem rod thermostat is automatically turned on and the water heater begin heating. When the water temperature reaches the preset temperature of the water heater, the hot water heater thermostat is disconnected, and the water heater stops heating.
Temperature Control Switch only, other accessories demo in the picture is not included!
Feature
1.Rating:16A/220V
2.Operating temperature: 30°c ---75 °c ±5 °c
3.Differential:5 °c ---10 °c
4.Over temperature protection: 95 °c ±5 °c
5.Life cycles: 100000 times
6.Customer's special request acceptable
Data Sheet
|
Type
|
rod thermostat
|
|
Functional cut-off
|
Unipolar
|
|
Safety cut-out
|
Bi-polar with bimetallic disk
|
|
Max temperature value
|
T 105°C
|
|
Electrical nominal tension
|
160A 250V
|
|
Max functional value
|
Max 80°C
|
|
Temperature selection range
|
From 20°C to Max
|
MOQ
A: Normally we accept order with 1,000pcs each model. For regular model, we also accept quantity below 1,000pcs.
Q: What's your delivery time?
A: About 25-30 days after deposit.
A: Our delivery time will be 25-30 days after deposit paid.
A: About 20-30 days by sea and 5-7 days by air.
Q: Can I get sample before order?
A: Yes. The sample fee and freight should be paid at your side. We will return the sample fee if order.
Q: Is it possible to print my logo on the product?
A: Yes. We offer OEM&ODM services. We can print your own logo on product.
Q: How do you guarantee quality?
A: For certificate, we have ISO9001, CQC, CE, ROHS, BEAB. For practical, we will do 100% inspection during production and before shipment.
Q: What if there is any defective goods in my order?
A: We will take the responsibility of products with quality problems if they are caused by us.
