Description

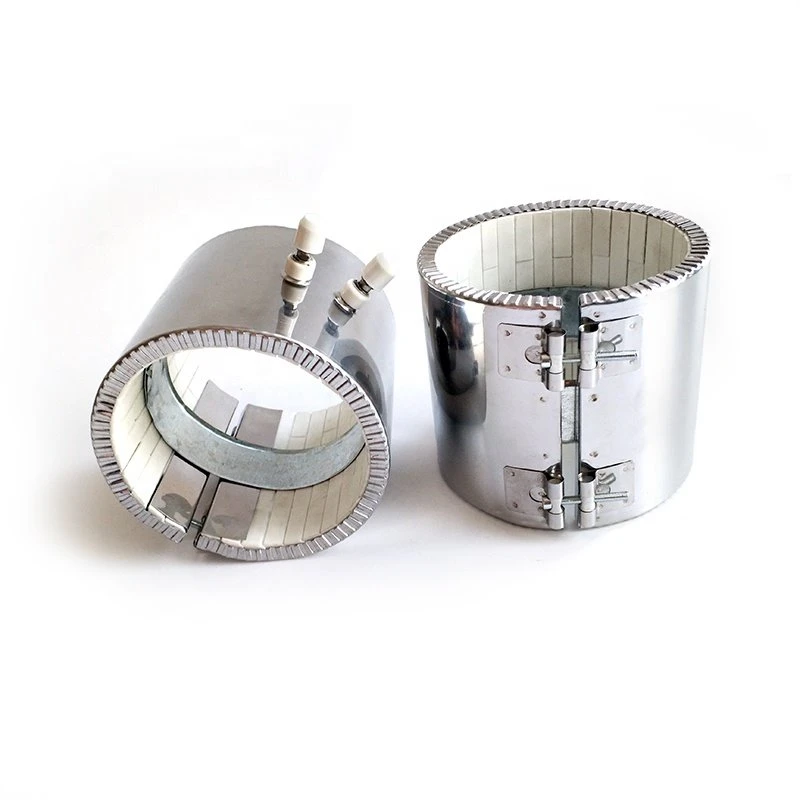

Made of ceramic insulators, nickel-chromium heating wires and stainless steel jackets, ceramic band heater is an ideal solution for high power density and high operating temperature applications, especially in the plastics industry.

The process of ceramic band heater we use is that ceramic strip to wear silk way, this product's power is higher than common 0.5~1.5 times. The heater is made of imported round silk pottery, which is twisted into a spring and threaded into a ceramic strip.

An additional advantage of the Ceramic Band Heaters is that they transfer heat through conduction and radiation. This makes their tightness on barrels less critical; thus they are less prone to thermal expansion problems.It is developed to meet industrial requirements for high temperature long lasting heaters.

Packaging machinery requires reliable heating to maintain product quality and operational efficiency. Customers demand heaters that deliver precise and uniform heat for processes like sealing, shrinking, or molding.

As energy costs rise, companies seek solutions that minimize energy consumption. Ceramic Band Heater For Packaging Industry is known for their energy efficiency.

Every packaging machine is unique, requiring heaters tailored to specific shapes, sizes, and wattage requirements.Ceramic band heater provide uniform heating for sealing films and wrapping products.Ensure airtight seals for better product preservation.

Ceramic band heater deliver high-temperature heat for melting and shaping packaging components.Offer energy-efficient operation for continuous use.

If we want to use a ceramic band heater properly,we must choose the band heater which matches the specifications of the packaging machine, including size, wattage, and voltage.Before installation, make sure the packaging machine is powered off and disconnected from the power source to ensure safety.Place the ceramic band heater around the packaging machine (such as sealing bars, heat tunnels, or nozzles).Make sure it fits snugly to avoid gaps that could lead to heat loss.

Ceramic band heaters can be manufactured with slots, holes, notches, European plugs and can satisfy all types of requirements. A number of terminals, wire lead options and terminal boxes offer great flexibility for field wiring.

To understand the important scientific principles involved in the design and operation of ceramic heaters. We need to solve the resistance heating problem first. As mentioned earlier, ceramic heaters work by the principle of resistance heating or also known as Joule or ohmic heating. Resistance heating is the generation of heat due to resistance loss when an electric current passes through a material. It is a form of converting electrical energy into heat. This transition is beneficial for electric heaters because resistance losses increase their efficiency. However, this effect is undesirable in some situations, such as in power transmission and distribution and in running most types of electronic devices and equipment.

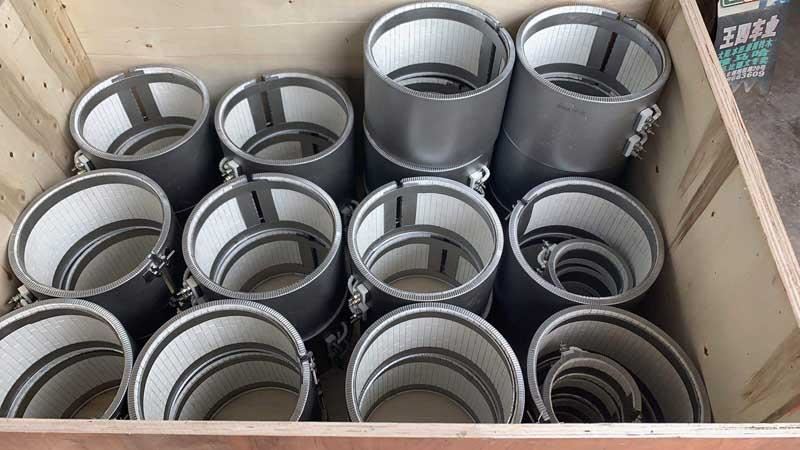

202002181708314331504

Data Sheet

Band Voltage	120V 220V 230V 240V 480V etc (under customer request)
Max working temperature	550 degree celsius
Resistance Wire Type	NiCr 80/20
Sheath Material	304 stainless steel
Insulation Material	Ceramic
Band Construction	One-piece or Two-Piece
Gap Locking Mechanism Type	Flange, Barrel Nuts or None
Lead Exit Position	Standard or Customized
Termination Style	Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug
Holes availability	Customer- Design
Notches availability	Customer- Design

Features

Easy to install

Long service life

Good Temperature Uniformity

Highly flexible, durable

Quick to respond to controls Two-Piece Bands are available per request

FAQ

1. Q: Is it possible to return the money if the quality is not good?

A: This has never been occured right now ,as we treat the quality as our key of development.Quality and service is everything for us.

2. Q: How do you guarantee the deliver time?

A: We have independent PMC department to arrange the production plan.

We have production meeting every morning to report the production progress and discuss the problems.

We will make production progress report to you every week and take some pictures for your reference, that's you can know our production progress clearly.

3. Q: How can I get the quotation?

A: We will submit the quotation in 8 hours if getting detailed information during working days.

In order to quote for you earlier, please provide us the following information together with your inquiry.

1) Detailed drawings (CAD/PDF/DWG/IGS/STEP/JPG)

2) Material requirement

3) Surface treatment

4) Quantity (per order/per month/annual)

5) Any special demands or requirements, such as packing, labels,delivery,etc.
