Description
Small volume and large power ,cartridge heater is especially suitable for the heating of metal molds. It is usually used with thermocouple to achieve good heating and temperature control effect.
For example

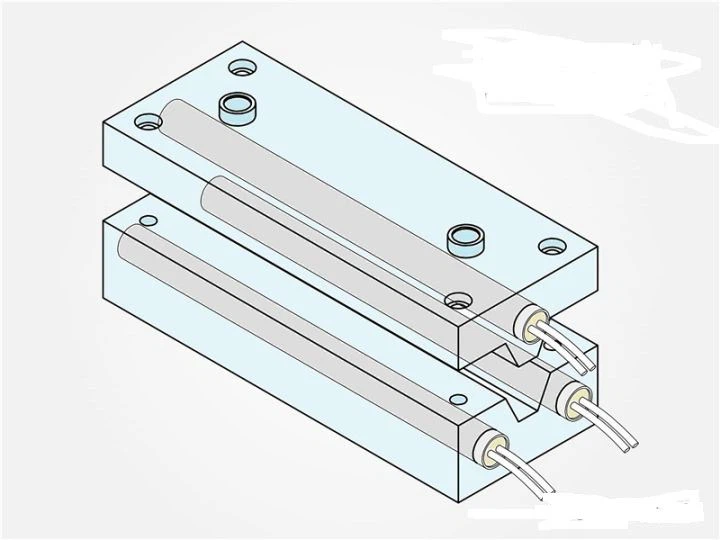

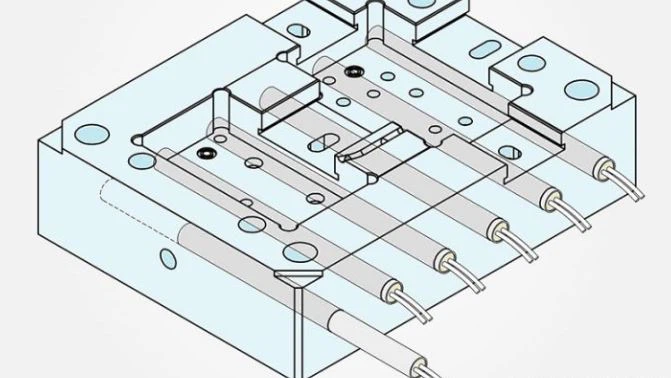

In the traditional plastic mold or rubber mold, the cartridge heater is placed inside the metal mold plate to ensure that the plastic and rubber materials in the mold flow channel are always in a molten state, and always maintain a relatively uniform temperature.
In the stamping die, the cartridge heating element is arranged according to the shape of the die to make the stamping surface reach high temperature, especially for the plate or thick plate with high stamping strength, and increase the efficiency of stamping process.
Cartridge heaters can operate at low, medium, and high watt densities. They are designed to withstand a working temperature of up to 1400°F. However, the optimal operating temperature will depend on the application for which you are using the cartridge heater.

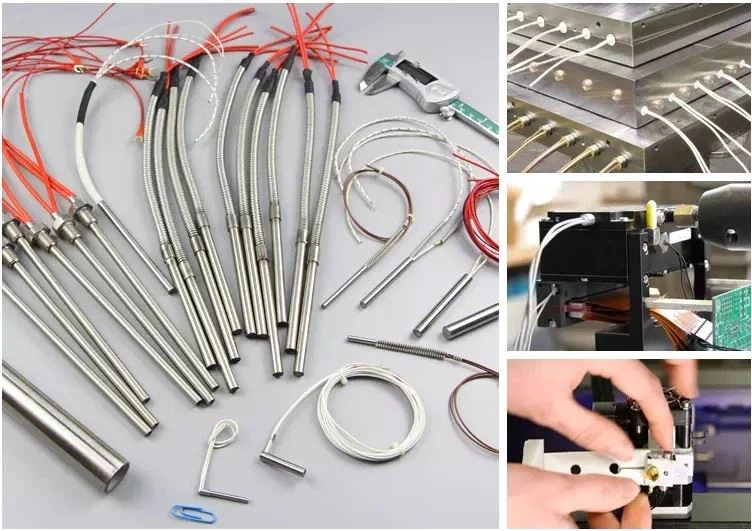

24V DC cartridge heater is mainly used for efficiently heating tools and workpieces. To this effect, the dc cartridge heater is pushed into a hole in the tool and fixed there. Different diameters and designs make sure that the temperature distribution matches the specifications as well as possible.
It is also important to consider the electrical termination of a cartridge in regard to the operating temperature. When cartridge heaters are used at relatively high temperatures, the electric terminals should either be different than the common high temperature lead wires.
We maintains an in stock inventory of a diverse assortment of low voltage cartridge heaters for product applications with design voltages between 12 and 48 volts.
Please check the below Dc cartridge heater spec.
Data Sheet
|
Product Name |
DC Cartridge Heating Element |
|
Outer Sheath Material |
Stainless Steel 310S, Incoloy 800; |
|
Resistance Heating Wire |
NiCr 80/20 wire |
|
Wattage Tolerance |
+5%, -5% |
|
Resistance Tolerance |
+5%, -5% |
|
Maxium Heating Temperature |
850 Degree Celsius |
|
Voltage Available |
110V- 600V AC |
|
Length Tolerance |
±2% |
|
Diameter Tolerance |
±0.02mm |
|
Standard Cold Size |
5-10mm or customized |
|
Insulation Resistance (cold) |
≥ 500 MΩ |
|
Maxium Leakage Current (cold) |
≤0.5 MA |
Main Features
* DC Cartridge Heating Element uses Imported resistance wire, ensure high density large wattge
* Fasteners and flanges to meet a variety of installation requirements.
* High temperature, wear-resistant, waterproof.
Application
● Injection moulding-Internal heating of nozzle
● Hot runner systems-Heating of manifolds
● Packaging industry-Heating of cutting bars
● Packaging industry-Heating of hot stamps
● Laboratories-Heating of analytical equipment
● Medical:Dialysis,sterilization,Blood Analyzer,Nebulizer,Blood Warmer,Temperature Therapy
● Telecommunications:Deicing,Enclosure Heater
● Transportation:Oil/Block Heater,Aiecraft Coffee Pot Heaters,
● Food Service:Steamers,Dish Washers,
● Industrial:Packaging Equipment,Hole Punches,Hot Stamp.
