Description

We supply safe, efficient high quality slant fin heating element in stainless that heat air silently, effectively and economically. For the same sheath diameter the surface is greater than that of plain versions.Finned heater is suitable for most applications where electric heating is required. They can be used in straight form or bent into a variety of shapes, according to the requirements of non-standard customization, so industrial electric heating pipes are generally not in stock.

Tubular finned heater is usually used in forced circulation heating of low temperature air. It is suitable for use in a wide variety of forced air heating applications, industrial ovens and food service applications.

Some applications require stainless steel materials for corrosion resistance. The most efficient finned heaters are made with steel sheath and steel fins. Steel is normally used for air heating, stainless steel for atmospheres which are humid or corrosive and monel for salt-laden humid atmospheres. Keep remember that stainless heaters with stainless fins are very inefficient since the heat transfer rate of stainless is less than one quarter that for steel.

The heater element for printing oven is a very important component in the printing press, and its role is to dry and cure the ink on the print . We usually use the U shape finned heater, let's take a closer look at its working principle and design.

First, the working principle

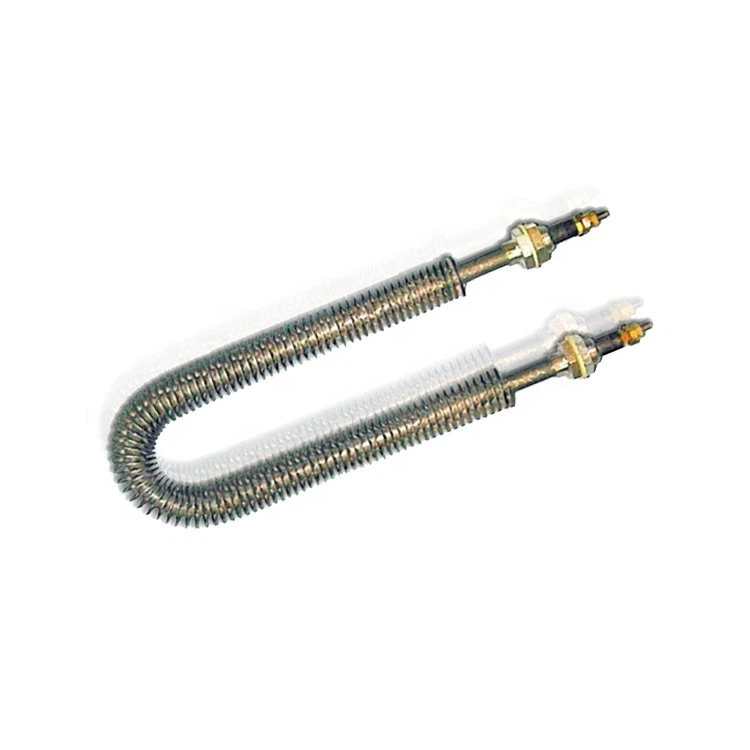

 U-shape finned heater element  is composed of heating wire, insulation material, shell and fin. When an electric current passes through the heating wire, the electrical energy is converted into heat energy, heating the fin and conducting heat. By exchanging with hot air, heat is transferred to the ink on the print, which dries and cures it.

Second,design features

The U-shape design can promise more stable and safe when working. As the U-shape structure can effectively prevent the heating wire from burning out the insulation material, it ensures the service life of the finned air heater.The fin design can increase the surface area of the heating element and improve the thermal efficiency. At the same time, the fins can also increase the contact area between the heating tube and the hot air, so that the heat is more evenly transferred to the print.

The shell material o is made of stainless steel or copper, which has good thermal conductivity and corrosion resistance. The heating wire is selected nickel chromium alloy or iron chromium aluminum alloy and other superalloy materials, these materials have good high temperature resistance and corrosion resistance.

The control system of the finned heater for printing is usually controlled by PID controller, which can achieve accurate temperature control.By controlling the heating power and heating time , the drying and curing of printed matter can be precisely controlled.

When application ,below points need to be pay attentions:

1. Heat preservation: finned heater is often used in hot air circulation and heat preservation system. There should be heat preservation and insulation layer around to reduce heat loss.

2 wind speed:  wind speed in 8-12 m/s is more appropriate, too high wind speed will increase the pressure head loss, too low will reduce the heat dissipation efficiency.

3. Installation: staggered installation is generally adopted to make the air contact surface of the flow larger, fully heated, and take away the heat.

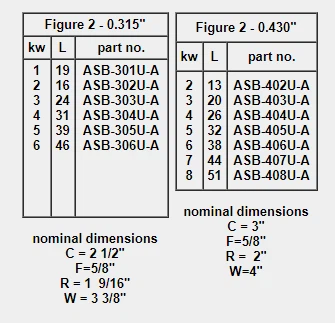

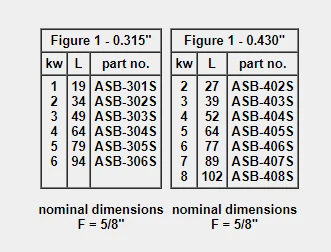

Data Sheet

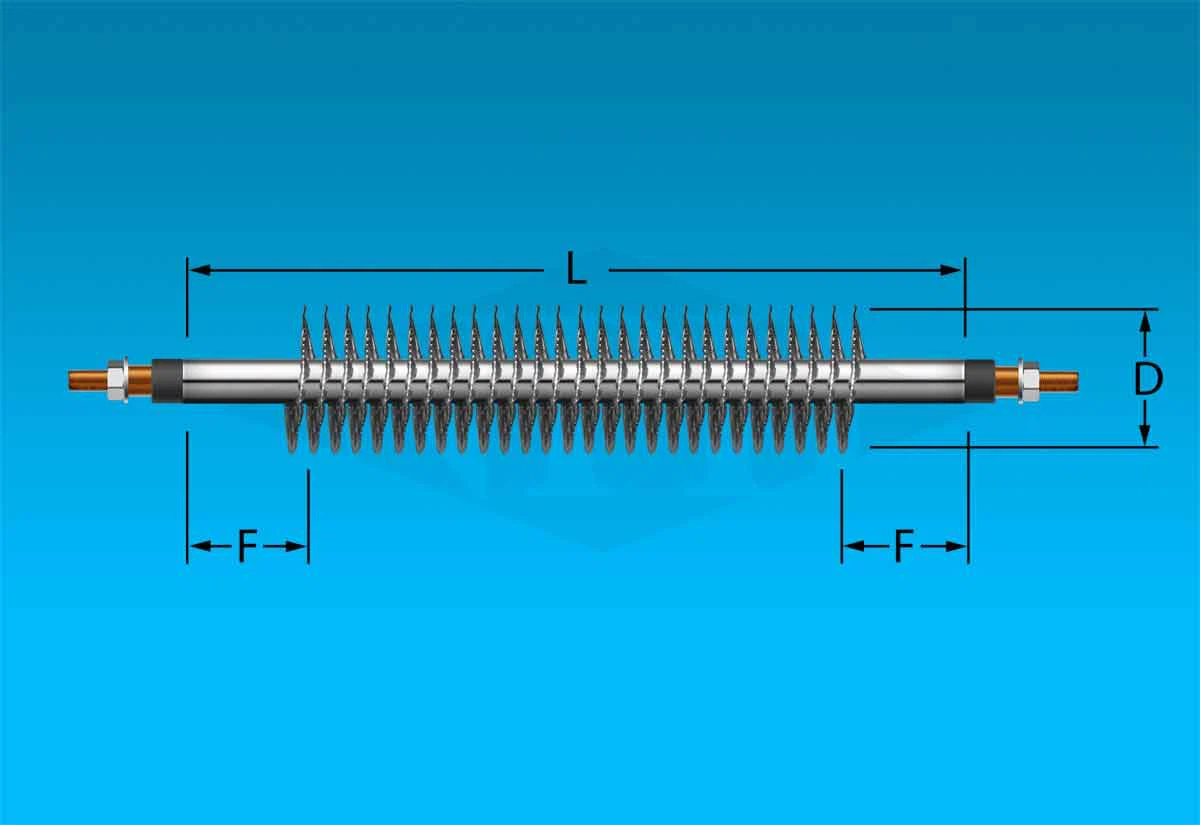

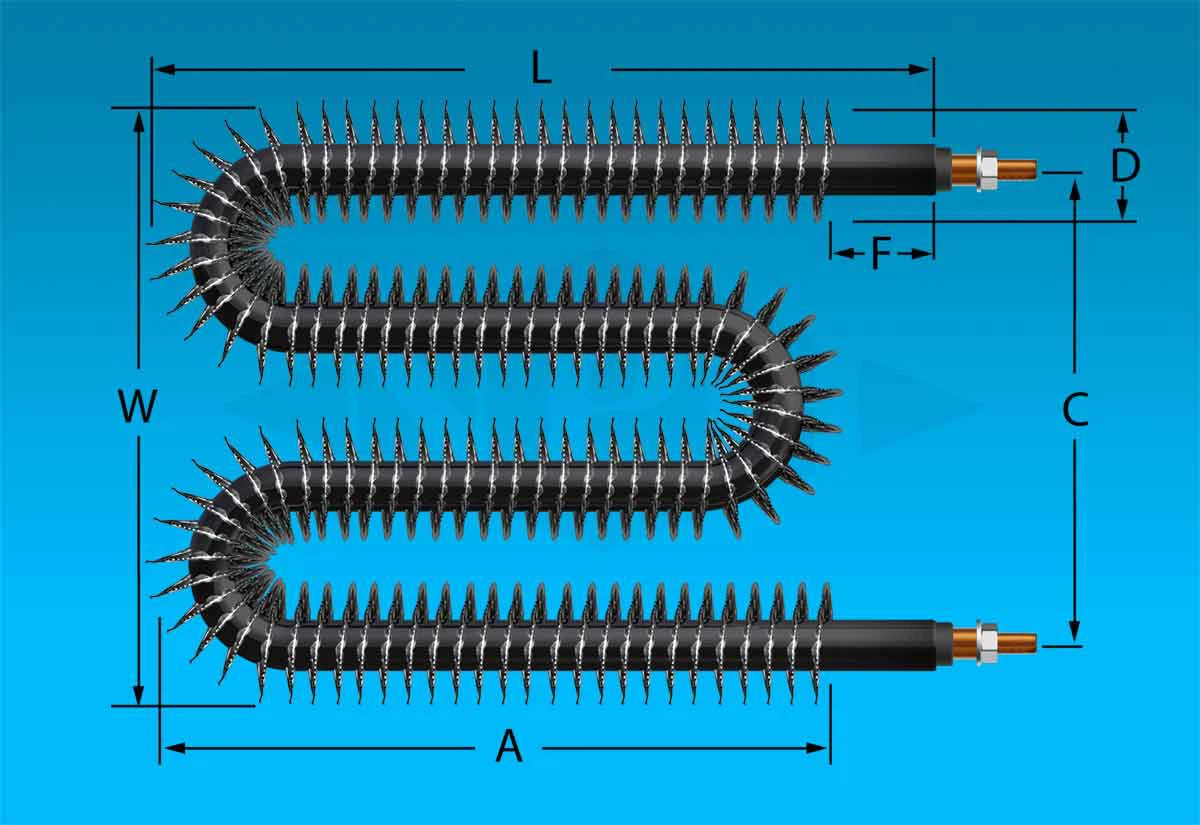

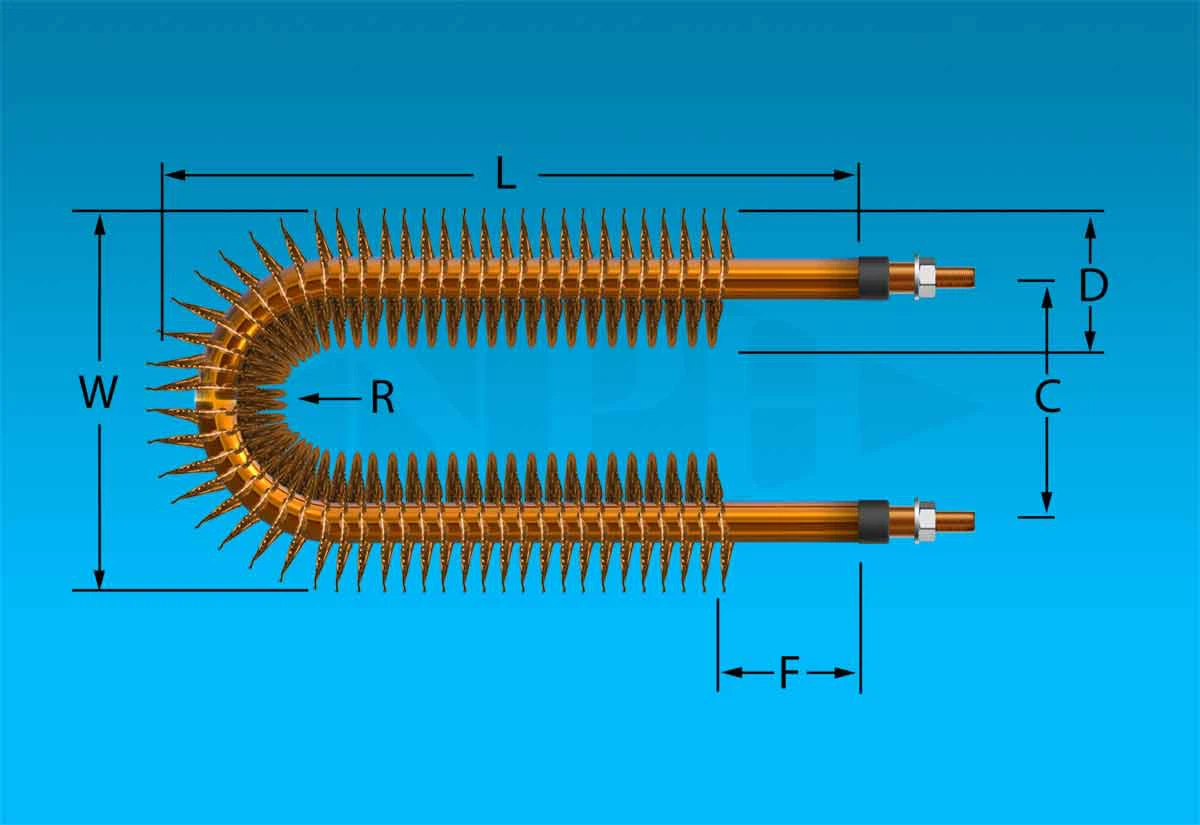

Finned Tubular Heaters Construction Styles

How to order ?

Pls provide this informations:

1.Vottage :380V,240V, 220V,200V,110V and other can be customized.

2.Wattage :80W,100W,200W,250W and other can be customized.

3.Size: length*Diameter.

4. Quantity

5. Other special requirements if you have

If you have the drawing, it will be very helpful.

Feature and advantage

1. We offer standard as well as customized models
2. We offer different tube diameters like 6 mm, 8 mm, 11 mm, 12.5mm, 16mm & 18mm
3. We offer different sheath materials. It can be availed in different materials like Incoloy 800, SS 304, SS 321, SS 316, Copper & Titanium
4. We offer various shapes as customer demand:immersion heater with flange or screw, explosion proof heater.
5. Various terminal options are available
6. Various shapes and sizes are available
7. Durable and has longer life
