Description
Ceramic band heater is made of micanite or ceramics covered with metal sheet, are used for contact heating in injection machines/extruders and for heating of containers, tanks etc.

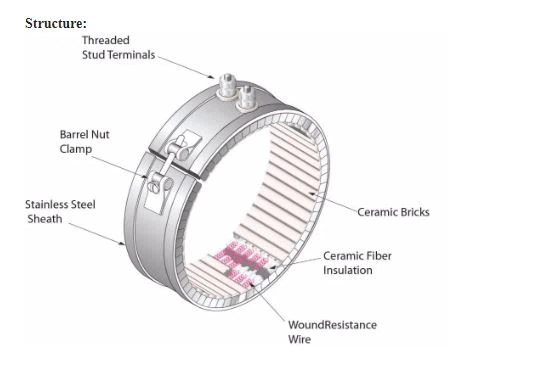

The structure features are as follow:
The heating element inside the band is made by winding imported round wires then inserting it into ceramic coil rings. This design enables the heating element to distribute heat evenly, thereby improving the heating efficiency.
Outer cover material: stainless steel, it has excellent corrosion resistance and high-temperature resistance, ensuring the stable operation in harsh environments.
Insulation and heat preservation layer: high-temperature insulation and heat preservation cotton (such as silicate aluminum fiber board), which effectively prevents heat loss and improves heating efficiency while saving energy.
Ceramic strips: Made of high-frequency ceramic material, they feature rapid heat conduction, hardness and durability, resistance to cracking at high temperatures, and resistance to deformation and aging.
Advantages
Ceramic band heaters make it possible to have high watt densities and to heat by conduction and radiation at high temperatures.It is used in plastic processing industry for keeping the nozzles of injection molding machines hot. Our ceramic band heaters are made according to customers'requirement and can be personalized (connection, tightening …) according to their temperature of use.
The heat of the Ceramic Band originates from the inner coils that conduct heat at maximum temperatures.When choosing a ceramic band heater, select a heater which meet the demand for the wattage requirements – to decrease the frequency of cycling and temperature overshooting, so to expand the life of the band heater.
It is specifically designed to meet the ever increasing demand for energy conservation and to improve operation efficency.The ceramic band heaters are capable of generating the higher temperatures essential to process today's high temperature resins.
For extruders application , widths for the ceramic band heater is 45mm, 55mm, 65mm, 90mm and 105mm.
The working temperature of ceramic band heater for extruder can reach 600 degrees. The maximum surface loading rate is 8 w/cm ². It also features fast heating speed, high heat utilization rate, excellent energy-saving effect (energy consumption reduced by 30%), and high barrier rate.
The characteristics
Customized sizes with different diameters and heights.
The internal medium and high-temperature can reach up to 1200 degrees Fahrenheit
Shell temperature of the ceramic band heater for extruder : 350 ° C - 450 ° F
Thickness: 12mm
The terminal types and thickness range of ceramic fiber insulating pads are extensive
With excellent thermal insulation, ceramic band heaters minimize heat loss, resulting in lower energy consumption and operational costs.
They provide consistent and even heat across the heating surface, essential for uniform sealing and reducing defects in packaging.
Designed for superior efficiency, long-lasting performance, and precise temperature control, our ceramic band heateris ideal for maintaining optimal heat in high-demand packaging operations. With customizable sizes, watt densities, and voltage options.
When heating a material for the first time, the material temperatureshould be monitored with a temperature indicating device and thefinal drum heater control setting recorded for future reference. Thematerial should be mixed to get an accurate temperature since thematerial near the outside of the drum will heat faster than the material near the center. This initial set-up should be done with the threeheat switch set on high. If the material you are heating exhibitsexcellent heat receptivity you may maintain your desired temperature with the three heat switch set on medium or low, thus reducingpower consumption.
• Use on all metal drums only.
• For use indoors only.
• Do not use to heat flammable materials.
• Do not use in hazardous areas.
• Vent container to prevent pressure build-up
Maintenance method when ceramic band heater have problem.
1.If the ceramic band heater is broken:
Solution:Turn off the power, remove the wire of the band heater , and check whether the ceramic band heater is burned out with a multimeter,if yes,replace it immediately.
2.Contactor burned out:
Check if the control power supply of the contactor for the ceramic band heater have electric, check whether the contactor is loose, then turn off the power, tighten the connector with a screwdriver, if the connector is not wrong, it must the contactor is broken, replace it, pay attention to make a mark.
3.Short-circuit:
Check the circuit with the multimeter section by section, and replace it after finding the short circuit of the ceramic band heater, or reconnect it
Data Sheet
Data Sheet
|
Band Voltage |
120V 220V 230V 240V 480V etc (under customer request) |
|
Max working temperature |
550 degree celsius |
|
Resistance Wire Type |
NiCr 80/20 |
|
Sheath Material |
304 stainless steel |
|
Insulation Material |
Mica |
|
Mini Diamter |
25mm |
|
Mini Width |
25mm |
|
Band Construction |
One-piece or Two-Piece |
|
Gap Locking Mechanism Type |
Flange, Barrel Nuts or None |
|
Lead Exit Position |
Standard or Customized |
|
Termination Style |
Standard lead, Screw terminal; 2-Pin Euro Plug or 3-Pin Euro Plug |
|
Holes availability |
Customer- Design |
|
Notches availability |
Customer- Design |
Product detail
Features
Easy to install
Long service life
Good Temperature Uniformity
Highly flexible, durable
Quick to respond to controls
Two-Piece Bands are available per reques
Application
1> Injection Molding
2> Blow Molding
3> Plastic Extrusion
4> Container, pipe or tank heating
Advantage
Ceramic band heater specifically designed for high operating temperature applications. The external temperature of a ceramic band is approximately 400°F while the operating temperature can reach approximately 1400°F. Ceramic heater bands are manufactured with a stainless steel cover and are fiber insulated preventing heat loss making them highly energy efficient and reducing operating costs. The interlocking ceramics make these heaters flexible, less prone to expansion problems and with a good thermal conductivity, the fitting around a barrel is less critical than a Mica band. Ceramic band heaters are easy to install and have a long functional life.
