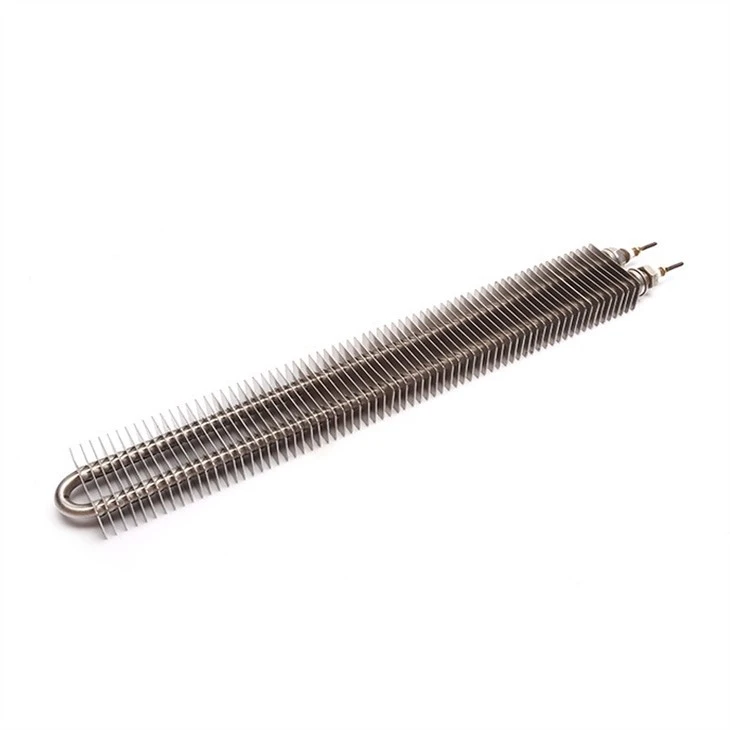

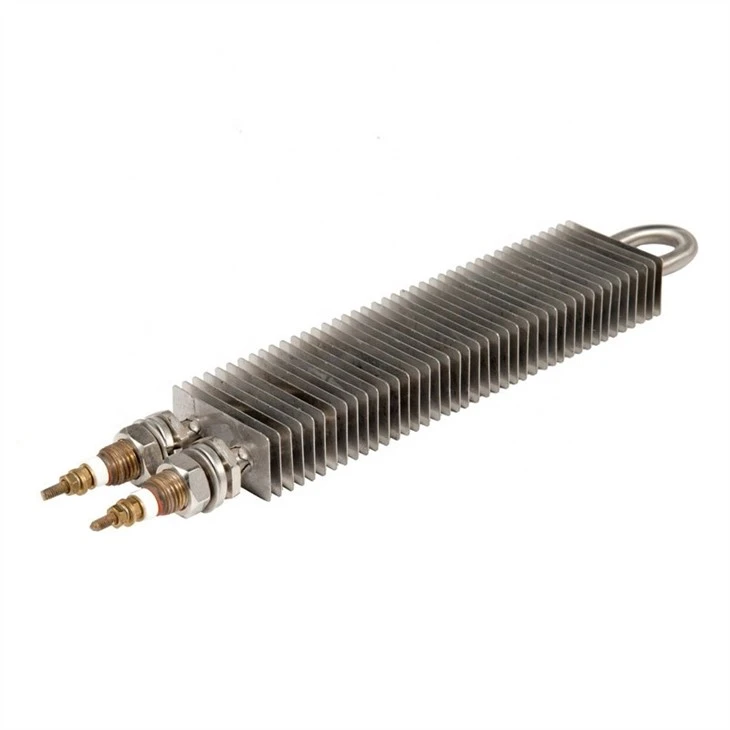

I U W Type Stainless Steel Finned Heating Element

Data Sheet

Description

Strong corrosion resistance: finned air heater is usually made of high temperature and corrosion resistant materials, such as stainless steel, nickel-based alloy, etc., which can run statically in harsh working environment for a long time.

As an important part of the foaming machine,it  plays a key role in the heating and temperature control of foaming materials. Its characteristics of efficient heat transfer, uniform heating and strong corrosion resistance make it an indispensable component in foaming machine equipment. Through reasonable design and selection of appropriate materials, W shape  finned air heater  can meet the needs of different foaming machine equipment, and provide stable and efficient heating effect, to provide reliable guarantee for the quality and production efficiency of foaming process. With the continuous progress of science and technology and the expansion of application fields, finned heater element  will continue to develop and innovate, bringing more technical progress and development opportunities for the foaming industry.

U shape finned air heater is a heating element used in oven ,it has the features as below:

First, efficient and uniform heating capacity: the U shape finned heater adopts a special design and structure, which can achieve efficient and uniform heating. The design of the fin increases the heating surface area, improves the heat transfer efficiency, makes the temperature distribution in the oven more uniform.

Second, fast response and precise control: the U shape finned heater has the characteristics of fast response, which can quickly reach the required temperature, reduce the preheating time and improve the production efficiency. At the same time, it can also ensure the stability and accuracy of the temperature through the precise temperature control system to meet the requirements of different printing processes.

Third, durable and reliable: it adopts high-quality materials and advanced manufacturing process, with excellent durability and reliability. It can withstand the test of high temperatures and long periods of operation, and is not susceptible to corrosion and damage, greatly reducing downtime and maintenance costs.

Components

We uses 80-20 ni-chrome wire, "A" grade magnesium oxide, and the highest quality tube. You can expect high quality from us.

Finned Tubular Heating Elements have 4 basic components:

1. Metal Sheath

2. Magnesium oxide (MgO)

3. Helix resistance coil

4. Cold section at each end

Why Are Finned Tubular Heating Elements So Widely Accepted For Process Heating?

 Extremely rugged Can be formed into many unique and complex shapes

Can be finned for improved forced air heat transfer

Easy to precisely control the heat output to perfectly match your process requirements

Low capital cost Negligible maintenance

Can be used in virtually every industrial environment up to about 1000°F (540°C)

Has a proven track record of over many years and applications.

Related style

The difference between the finned heater element and heater element without fins

1.The dissipation area of finned heater is  increased by 2.5 ~ 4 times, tube surface load increased by 1.5 times. It has the advantages of fast heating, high thermal efficiency and long service life.

2, in the limited heating device, the power can reach 1.5 ~ 2 times of the optical tube power, greatly reducing the volume of the heating device, saving the cost of users. Finned tubular heater is widely used in heating places with stationary flowing air. In machinery manufacturing, automobile, textile, food, spraying, air conditioning and other industries for hot air, ventilation, drying room, heating and so on.

Product Detail
