Description
Stainless steel cartridge heater have good insulation performance, with high thermal conductivity of high purity magnesium oxide as filling material, the product inherent power, high thermal efficiency, rapid heat dissipation and other characteristics.
This cartridge heater has the power of 200 watts, it ensures fast and even heating. Operating temperatures up to 600 ° C make it suitable for a wide range of high-temperature industrial applications.
The main body is made of SUS321 stainless steel with excellent corrosion resistance and high temperature resistance. The combination of nickel wire and PTFE coating ensures long-term durability and stability of the product.
Designed with ease of installation in mind, it is suitable for a variety of industrial environments, including but not limited to mold heating, automatic packaging machines, etc.
Stainless Steel Braid cartridge heater,the MGT (450°C) wire is internally linked and swaged in place, together with stainless steel braid. This construction protects against scratches and sharp edges. This is an extremely sturdy structure with full-length flexibility. This structure is suitable for flexing applications where the leads must pass through metal apertures or be routed along metal components.
Our Cartridge Heaters are used by many industries but it is proven to be the best type for the Food Industry, due to its localised heat source.
All food preparation equipment must use reliable heating for the preparation, processing, preservation and packaging of the food.
316L stainless steel is considered to be the best food-grade stainless steel material.
The variety of cartridge heaters available can be used in different applications such as coffee makers, food warmers, dairy equipment, heat sealing equipment, baking equipment… and much more.
Before purchasing stainless steel cartridge heater, we need to pay attention to several points:

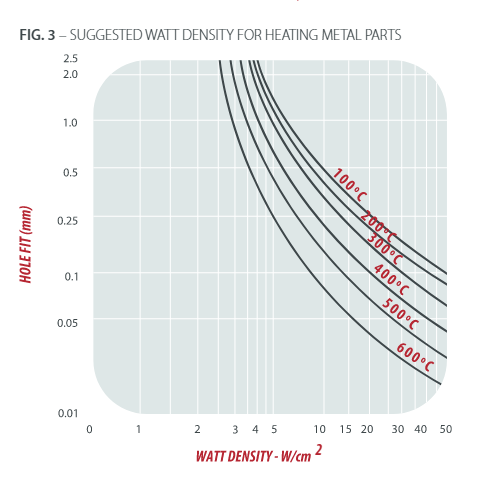

1. Whether the pipe diameter matches the hole diameter of the die.
2. Is there temperature control for the normal operation of the heating element? If so, how many degrees is the temperature?
3. If there is seismi in the process of heating
When choosing injection molding machine heater element, stainless steel cartridge heater is a more common choice. It consists of a heating element and a protective housing with the following advantages:
1. High thermal efficiency: the design of resistance cartridge heater enables it to quickly heat the mold, saving production time and cost.
2. long life: using high-quality materials and advanced technology manufacturing, industrial cartridge heater can withstand high temperature and high pressure, and long service life.
3. Easy installation and maintenance: Electric heating cartridge is simple, convenient installation and maintenance.
When using the cartridge heaters,what should we pay attentions to?
1.The heating part of the cartridge heater should be fully immersed in the heating medium to avoid heat dissipation and exceed the allowable heating temperature to damage the electric heater. In addition, the leading part of the wire should be exposed outside the thermal insulation layer of the heater , so that this part should not be overheated and damaged.
2.The input power supply, the voltage should not exceed 10% of the rated voltage marked , if applicable to lower than the rated voltage, the heat generated by cartridge heater will also decrease.
3. Terminal should be kept clean and dry, on the contrary, it will reduce the insulation performance and be short-circuit breakdown, if the application of chemical corrosion, flammable, explosive and other liquid or gas environment, in case of accidents ,wiring part should be protected with insulation sealing device .
4.When heating some viscose and other substances, such as sodium nitrate, stearic acid, paraffin, etc., the power supply voltage should be reduced , and then increased to the rated voltage for heating when all melted into a liquid.
Performance indicators
1 .heating time of micro cartridge heater: under the test voltage, the element from the ambient temperature to the test temperature time should not be more than 15min;
2.Deviation of rated power: under full heating conditions, the deviation of rated power of components shall not exceed the range specified below, ±10% for components with rated power less than or equal to 100W. For components with rated power greater than 100W, +5% ~ -10% or 10W, the greater of the two;
3.Insulation resistance: the cold insulation resistance shall not be less than 50M ω during factory inspection;
We have over 400 stock list cartridge heaters available for rapid delivery.
All stock list heaters receive quantity discounts once they've been added to your shopping cart.
1/4" Diameter (0.25") 3/8" Diameter (0.375") 1/2" Diameter (0.50") 5/8" Diameter (0.625") 3/4" Diameter (0.75")
