Description

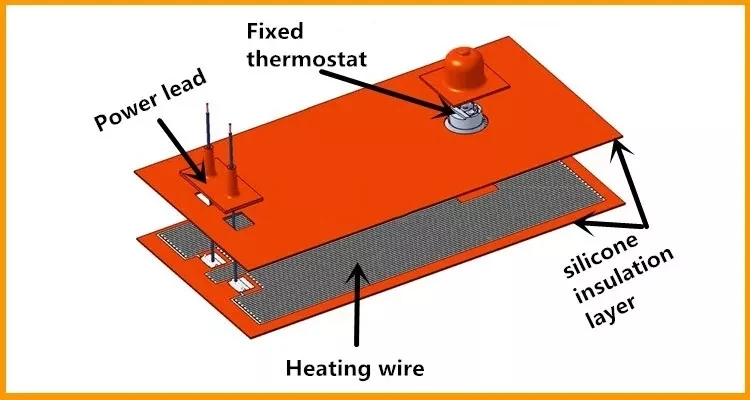

Silicone drum heater for oil is made of fiberglass cloth impregnated with silicone rubber, which together provide great strength and flexibility. A wire heating element is then vulcanized between two layers of silicone rubber, forming a durable yet very flexible heat blanket that is resistant to moisture, chemicals, acids and many industrial solvents.
High temperature rubber sheet is flexible, easier to get close to the object being heated, and its shape can be designed to be heated on demand, allowing heat to be transferred wherever it is needed.
High temperature silicone pad is composed of nickel alloy resistance line after the arrangement, so it can be used safely. And the surface heater can be made into various shapes as required.
Silicone rubber heating blanket is widely used on industry ,agriculture, medical and household electrical appliances, high temp rubber sheet heat fast and high efficiency thermal conversion, it is light and flexible heater.
Drum heater can be customized the practice power, voltage ,size,customer's logo and more lowest price and fast delivery of the goods.
We are offering to our esteemed customers Drum Heaters specifically designed to ease the removal of various viscous materials. Drum Heaters also provide freeze protection and are available with fixed or adjustable thermostats for various applications. We offer different types to suit variety of applications, and usage, protect materials vulnerable to freeze damage Adhesives.
Installing the silicone drum heater for oil is a relatively simple process, but it is crucial to follow the manufacturer's instructions and safety guidelines to ensure proper installation and safe operation.
Here is a general guide on how to install
1. Collect the necessary tools and materials:
Silicone roller heater,the drum or container to be heated,insulating materials (if necessary),fastening belt or strap (usually provided along with the heater),screwdriver or other necessary tools.
2. Prepare the drum:
Make sure the drum or container is clean and dry. Remove any dirt, debris or contaminants that might interfere with the adhesion of the heater.
3. Position the heater:
Place the silicone drum heater flat on a clean surface, making sure the heating surface is facing upwards.
4. Bass Drum:
Wrap the silicone roller heater around the outside of the drum, ensuring it is centered and properly aligned. The heating element should be in direct contact with the surface of the roller.
5. Tightening the heater:
Use the provided fastening belt, strap or buckle to secure the heater in place. Make sure the heater is tightly and evenly installed around the drum.
6. Position the power cord:
Place the power cord in an accessible position that does not interfere with the operation of the photoconductive drum.
7. Fixed power cord:
Use clips or straps to secure the power cord to the drum to prevent it from getting tangled or damaged during operation.
8. Connect the power supply:
Insert the power cord of the silicone roller heater into the appropriate power socket. Make sure the voltage is in line with the requirements of the heater.
9. Temperature Control (if applicable):
If the heater has an internal thermostat or temperature controller, please set it to the desired temperature.
10. Test:
Turn on the heater and monitor its performance. Check if the heat distribution on the drum surface is uniform and ensure that the heater is working as expected.
Oil drum heater is a kind of silicone rubber heater,Using the soft and bendable characteristics of the silicone heating pad, the metal buckle is riveted on the reserved holes on both sides of the heating plate, and the barrel body, pipeline and tank body are fastened with a spring.
By winding on the surface of the pipeline and tank, the silicone heater provides continuous and stable heat, effectively preventing the solidification and crystallization of crude oil and other materials, ensuring the flow of materials and ensuring the smooth progress of production. A large crude oil company installed silicone rubber heater, in extremely cold weather, the pipeline can still maintain good flow of crude oil, to avoid the solidification caused by the production accident, greatly improve the production efficiency.
Through heating, the liquid and solidifying material in the drum can be easily removed, such as the adhesive, grease, asphalt, paint, paraffin, oil and various resin raw materials in the drum, and the viscosity can be heated to decrease evenly and reduce the power of the pump. Therefore, the device is not affected by the season and can be used all year round.
Technical parameters of silicone rubber oil drum heater
1) Compressive strength: 1500v / 5s
2) Power deviation: ± 8%
3) Withstand voltage: > 5 KV,
4) Small 20mm×60mm thickness 1.5mm (thin 0.8mm, thick 4mm) Lead length: standard 200mm, beyond the above size please contact us.
5) High temperature resistance of insulating material: 250℃
6) High operating temperature: 250℃-300℃
7) Insulation resistance: ≥5 MΩ
Note: It can be customized according to the voltage, power, size and shape required by users.
Notice
1.We need your drawing(CAD,PDF..) if you want to customzied make a perfect Heater
2.Any requriements will be satisfied
3.Welcome visit us in our factory
4.10 years of international trade experience
5.CE & ROHS certifications ,ISO9001
6.Professional team service for our dear customers
7.High quality and fast lead time
Product detail
Flexible Heater Lead Exit Location Options
Application
1.3D printer Hotbed
2.Food heating pad and candy making hot plates
3.Industry heating blanket.
4.Thermal transfer equipment;
5.Prevent condensation in motors or instrument cabinets;
6. Freeze or condensation prevention in housings containing electronic equipment,
